|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||carton box|
|Payment Terms:||T/T, LC, Credit Card|
|Product Name:||Multiport Pneumatic Diaphragm Valve||Materials:||SS316L / 1.4404|
|Size:||1" - 3" DN25 - DN80||Operation:||Stainless Steel Actuator|
|Connection:||Welding||Gasket:||EPDM + PTFE|
|Feature:||Better Sealing||Actuator:||Double Actuator|
diaphragm check valve,
3 way diaphragm valve

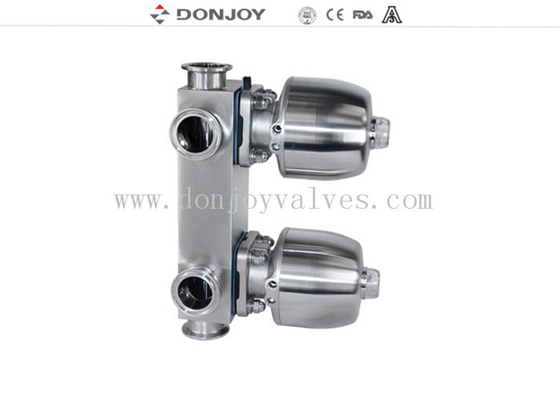

3/4 Inch Multi function Sanitary Diaphragm Valve DN80 , 3 ports

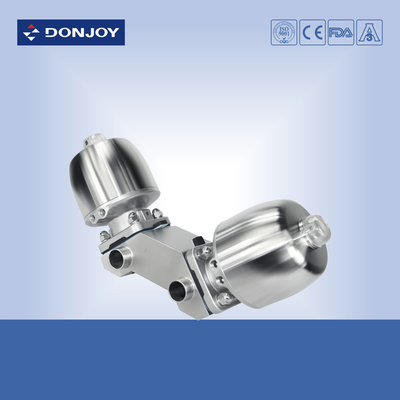

3/4 Inch Multi-function Pneumatic Diaphragm Valve with Two Control valves 3 ports
Valve Body Material:
forging body 14404/316L
Two pieces PTFE+EPDM(standard)EPDM/SILICONE/FPM single piece, one piece adhesive
6 bar to 8bar(depending on diaphragm)
-10 degree c to 130 degree C(depending on diaphragm)
Pneumatic actuator(stainless steel and plastic)
M-32A, M-32B, M-32F, M-32G, M-33A, M-33B,M-44A,
Smart valve positioner / C-TOP control / position sensor
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Dairy,food, beverage, pharmacy, cosmetic, etc
Aseptic valve body
Bubble pack for each valve.
Usually within 20 days after receiving T/T down payment.
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.
Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.
New diaphragm design.
Maintenance is simple,safe and easy to operate.
Had excellent KV value.
CIP/SIP sterilization and cleaning.
M-32A Type multiport diaphragm valve
Two control valves, 3 ports
Three-way divert seat valve
S1 suggested up installation
Please check the size form below for detailed information.
