3A CE Pneumatic Double Seat 4" PN16 Butterfly Valves

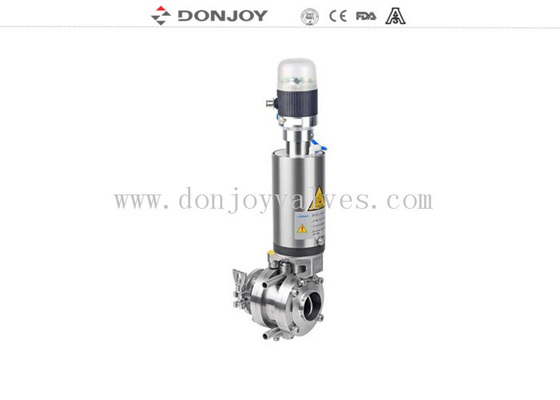

Large Image : 3A CE Pneumatic Double Seat 4" PN16 Butterfly Valves

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VDF301Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton box/Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	50 sets 20 working days

Contact Now

Detailed Product Description

Product Name:	Pneumatic Double Seat Butterfly Valve	Materials:	304 / 316L
Size:	DN50-DN100,2"-4"	Operation:	Actuator
Connection:	Welding	Seal Standard:	3A Certification
Temperature:	-10℃ To 130℃	Max Pressure:	10 Bar
Highlight:	PN16 Butterfly Valves , 4" Butterfly Valves , PN16 electric butterfly valve

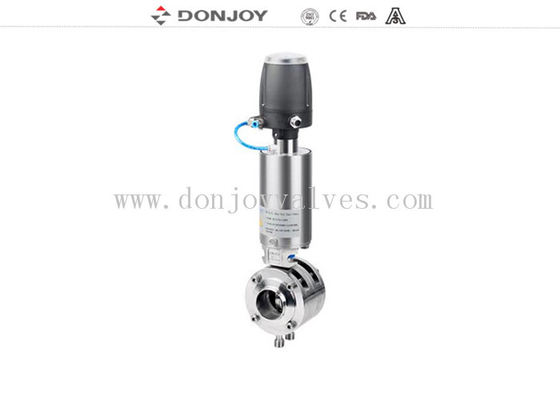

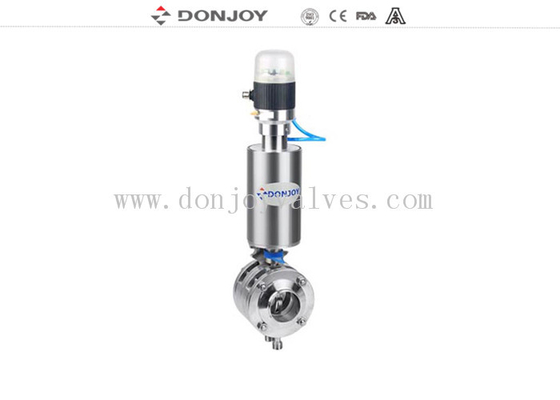

3A CE DONJOY pneumatic double seat butterfly valve with position feedback unit F-TOP

specifications

Product Name:	3A CE DONJOY pneumatic double seat butterfly valve with position feedback unit F-TOP
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10Bar,PN16
Max.Working Temperature:	130 degree C
Available size:	DN50-DN100, 2"-4"
Available connection:	welding / thread /Clamp/ special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic
Handle application:	Pull handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Feature of structure:	Mixing proof butterfly valve with position feedback unit F-TOP
Option:	With smart head C-TOP or Positioner IL-TOP

Classification
Mixture proof butterfly valve;
Double seat butterfly valve;
Single seat butterfly valve;
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

Handle selection
Pull handle

Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Packaging Details
Bubble pack for each valve.
outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
