3A / SMS / ISO Sanitary Rectangular Tank Manhole Cover Outward Opening

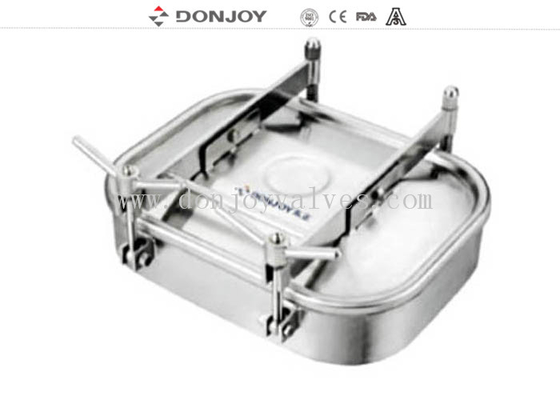

Large Image : 3A / SMS / ISO Sanitary Rectangular Tank Manhole Cover Outward Opening

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	NO.ERK421

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	Dimensions:	425*335mm
Stanadard:	DIN,3A,SMS,ISO	Connection:	Weled, Flange
Key Words:	Manway, Sanitary Manhole Cover, Tank Cover	Handle:	Outward Opening
Highlight:	heavy duty manhole covers , internal manhole covers

3A / SMS / ISO Sanitary Rectangular Tank Manhole Cover Outward Opening

Tgas:
Tank Manhole Cover,Food grade tank cover,Rectangular manway

Quick Detail
1.Name: Manhole Cover,Manway, Donjoy Stainless steel top tank manhole cover
2. material: SS304; SS316; AISI304 , AISI316L ,1.4301,1.4404
3. Surface: polished inside outside
4. Type: square,circular, elliptical, handhole cover
5. Application: dairy, food, chemical, beverage, pharmaceuticals, water treatment, beer etc.
6. Fineness: inner and outer fineness of mirror Ra≤0.8μm

Specification

Product Name:	316L Sanitary Square man hole cover,rectangular manway with 425*335mm
Material:	AISI304, AISI316L
Size:	425335,535435,235*185mm
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded, Flange
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Technical inforamtion:
Size:425*335,535*435,235*185mm
Gasket: EPDM,NBR,SILICONE,
Height:75mm,100mm,160mm or customized
Working Pressure:0.2-1Bar
Thickness:8mm or according customer requriement.

Question:
1.How long it is to make small quantity or samples
Answer: Samples for test is allowed. And it takes about 1-2 days for our standard manhole.
2.Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization
3. How long of the warantty
About one year except the seal

Product drawing

3A / SMS / ISO Sanitary Rectangular Tank Manhole Cover Outward Opening 0
