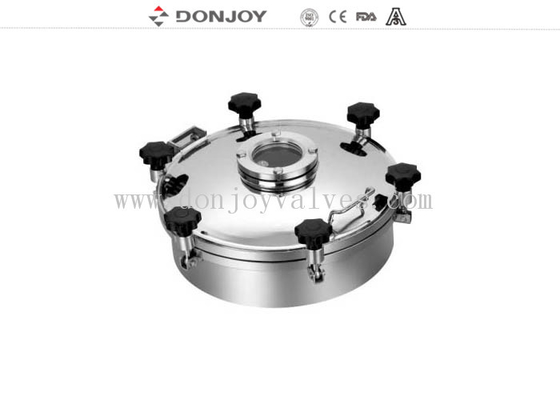

400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass

400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass

    • 400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass
    • 400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass
  • 400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.ERK111

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Supply Ability: Negotiation
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 200MM-600MM
    Stanadard: DIN,3A,SMS,ISO Connection: Weled, Flange
    Polished: Mirror, Matt Handle: Plastic Wheel, Stainlees Steel Wheel
    High Light:

    recessed manhole covers

    ,

    internal manhole covers

    400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass


    Quick Detail
    1. Name: Manhole cover with Sight glass. Stainless steel tank covers. Vessel manway.
    2. material: SS304; SS316; AISI304 , AISI316L
    3. Surface: polished inside outside
    4. Type: square,circular, elliptical, handhole cover
    5. Application: dairy, food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel ,tank etc.
    6. Fineness: inner and outer fineness of mirror Ra≤0.8μm;


    Design and features
    Size:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*150mm,800*1500mm, Or customized
    Type: With DN80,DN100,DN125,DN150 Flange sight Glass
    Gasket: EPDM,NBR,SILICONE,FPM
    HEIGHT:100mm,12mm,150mm or customized
    Working Pressure:2-5Bar
    Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm,320Grit,
    Handle: Plastic, Stainless Steel

    Specification


    Product Name:

    Glass Pressure Manhole Cover,500mm Mayway, SS304 and 316L use for the top tank

    Material:

    AISI304, AISI316L

    Size:

    DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm
    ,600*150mm, 800*1500mm,

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Welded, Flange

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2008, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers


    Application:
    Manhole cover with pressure is mainly used for pressure vessel in the field of food,beverage,chemical,etc

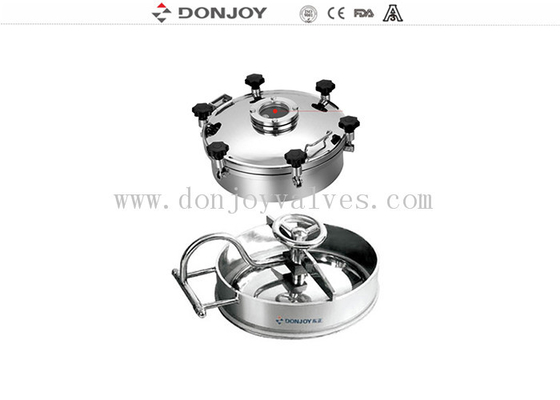

    Product drawing

    400mm Weled Pressure Food Tank Manhole Cover With Flange Sight Glass 0


    FAQ
    1. What about the delivery time of the manhole cover
    Answer: Normally Takes about 7-10 days
    2.How about the Surface
    Answer: Our standard with mirror inside and outmatt side.If your have requirement in Ra,please let me know it.
    3. The height of the square Manhole:
    Answer: Our standard with 65mm Height, 8mm thickness. Or if you have reqruirement, we also can according it to custom.
    4.Can you do as specifize size and print own logo on it ?
    Answer: Yes, We support specifications cutomize and personalized customization
    5. Can we add the sight glass on the manhole Cover
    Answer: Yes. Sight glass with light or wipper also ok.
    If you need more information or catalogues,please contact us freely.


    Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
