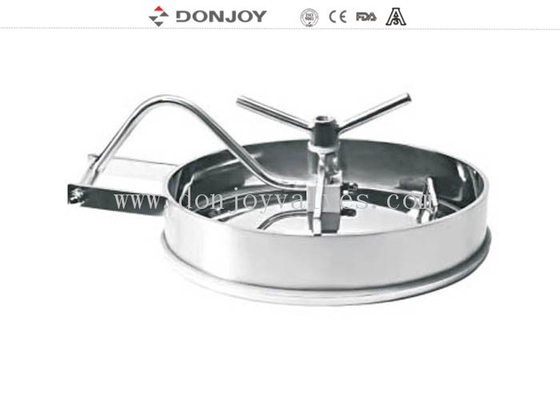

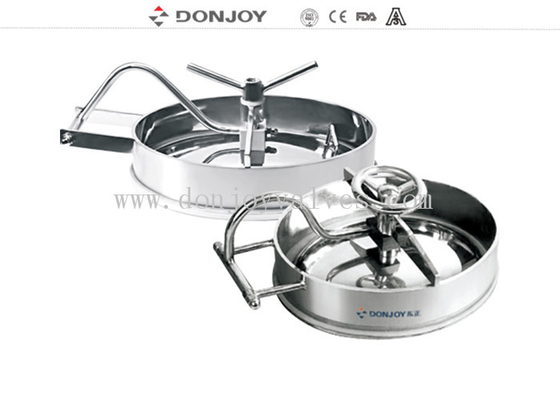

Oval Inward Sanitary Φ435x335mm Tank Manhole Cover SS304

Oval Inward Sanitary Φ435x335mm Tank Manhole Cover SS304

Φ435x335mm Tank Manhole Cover

SS304 Tank Manhole Cover

100mm Tank Manhole Cover

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.ERK311

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
Dimension:
435*335,530*430,535*435,635*525
Stanadard:
DIN,3A,SMS,ISO
Connection:
Weled
Polished:
Mirror, Matt
Height:
75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Carton, Wooden Case
Delivery Time
5-30 working days
Payment Terms
T/T,L/C, Credit Card
Supply Ability
100pcs/Day
Product Description

Sanitary Stainless steel oval inward Manhole Cover sanitary tank manhole(Φ435x335mm, SS304)
Quick Detail
Manhole Cover,oval Manway
Demission:435*335,530*430,535*435,635*525 Or customized
Height:75-80mm,90-100mm,80-90mm,100-120mm,130-160mm
Type: oval pressure manway
Handle: Plastic wheels, Stainless Steel wheel


Specifications

Product Name:

Oval inward manway hole tank door

Material:

AISI304, AISI316L

Size:

435*335,530*430,535*435,635*525

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Max Pressure

0.5-3bar

Hanle

Spanner type,wheel handle


Drawing
Oval Inward Sanitary Φ435x335mm Tank Manhole Cover SS304 0

SizeHL1L2T
435*335754353358
530*430100530430010
635*525160635

525

10

Unit: mm



SizeTolerance
200-350±1.2mm
400-600±2mm

Unit :mm

Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc

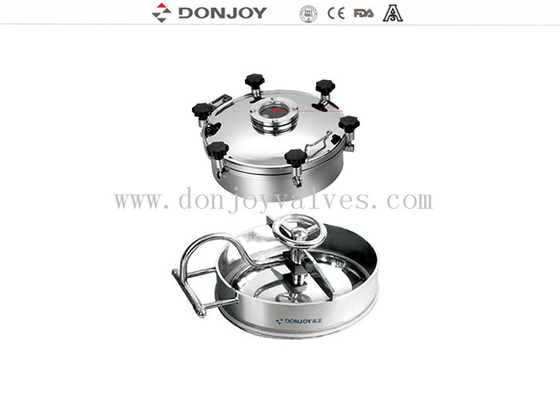

Outward opening manhole cover

Manhole cover optional
1.Glass pressure manhole cover
2.Non pressure round manhole cover
3.Pressure man hole cover
4.High pressure manhole cover
5.Elliptical man hole cover
6.Square manhole cover
7.Rectangular manway
8.Mini type manhole cover
Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
4.Can you do as a specific size and print our logo on it?
Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.

Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
