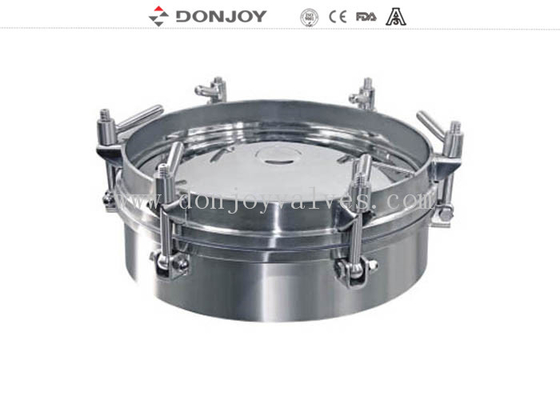

DONJOY High Pressure Manhole Cover For Chemical Tanks With SS316L

DONJOY High Pressure Manhole Cover For Chemical Tanks With SS316L

large.img.alt

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.ERK121

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 100pcs/Day
Contact Now
Detailed Product Description
Brand: DONJOY Dimension: 400MM-800MM
Stanadard: DIN,3A,SMS,ISO Connection: Weled, Flange
Polished: Mirror, Matt Height: 100mm,150mm,120mm
High Light:

Chemical Tanks High Pressure Manhole Cover

,

SS316L High Pressure Manhole Cover

,

DIN 3A Tank Manhole Cover

DONJOY higher pressure manhole Cover for chemical tanks with SS316L


Quick Detail
Manhole Cover,Manway
Demission:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*150mm,800*1500mm, Or customized
Height:100mm,12mm,150mm,300mm
Type: Round pressure
Handle: Stainless Steel wheel



Specificati

Product Name:

DONJOY higher pressure manhole Cover for chemical tanks with SS316L

Material:

AISI304, AISI316L

Size:

400-800

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded, Flange

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste

water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm,inner and outer mechanical polish and electrical polish Ra 0.2μm,external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel ,tank etc



Drawing

DONJOY High Pressure Manhole Cover For Chemical Tanks With SS316L 0


Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outmatt side.If your have requirement in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have reqruirement, we also can according it to custom.
4.Can you do as specifize size and print own logo on it ?
Answer: Yes, We support specifications cutomize and personalized customization If you need more information or catalogues,please contact us freely.


Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
