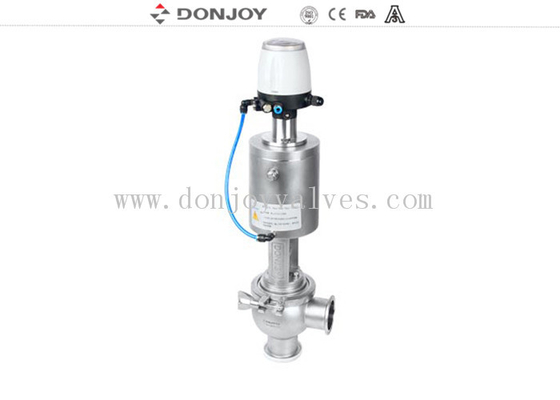

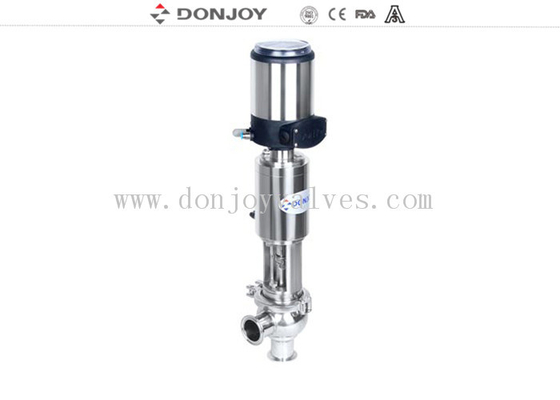

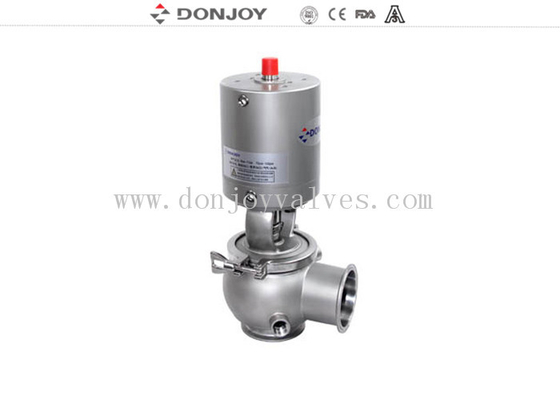

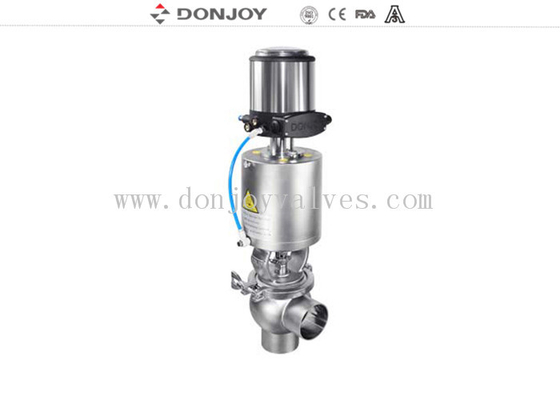

Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L

Large Image : Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $400 - 1,200 / Piece
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	SS304 / 316	Media:	Water Etc.
Operate Mode:	Pneumatic	Size:	DN25 - DN150
Pressure:	Medium Pressure	Valve Seat:	Single Seat
Product Name:	Reversing Valve	Ra:	Could Reach ≤0.5μm
Highlight:	ball valve diaphragm , diaphragm actuator valve

Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L

Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic Divert Seat Valve

Specification

Product Name:	sanitary aseptic reversing valve with pneumatic actuator for conveying fluid
Valve Body Material:	Stainless steel
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10 bar
Max.Working Temperature:	130°C
Available size:	DN25 - DN150 or 1" - 6"
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Pneumatic operation
Structure	Aseptic type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy, food, beverage, pharmacy, cosmetic etc
Body seat	single seat
Body type	20type,30type,11type,12type,21type,22type,31type,32type
Feature of seal:	Elastic compression, friction - free

Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

Product drawings

Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L 0
