Aseptic sanitary reversing seat valve 3 way(21 type) with pneumatic operation

Large Image : Aseptic sanitary reversing seat valve 3 way(21 type) with pneumatic operation

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	21 Type

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	US $400 - 1,200 / Piece
Packaging Details:	carton box
Delivery Time:	according to order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Material:	SS304 / 316L	Media:	Water Etc.
Operate Mode:	Pneumatic	Size:	DN25 - DN150 Or 1" - 6"
Pressure:	Medium Pressure	Valve Seat:	Single Seat
Structure:	With Pneumatic Actuator	Surface Finish:	Sandblast Or Mirror Polishing
Highlight:	Aseptic reversing seat valve , 3 way reversing seat valve , Pneumatic reversing seat valve

Aseptic sanitary reversing seat valve 3 way(21 type) with pneumatic operation

Tag
Aseptic sanitary reversing seat valve
Aseptic pneumatic reversing seat valve
Aseptic seat valve

Specification

Product Name:	Aseptic sanitary reversing seat valve with pneumatic actuator
Valve Body Material:	304 / 316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10 bar
Max.Working Temperature:	130°C
Available size:	DN25 - DN150 or 1" - 6"
Available connection:	Clamp / welding / thread / special connection
Available standard:	3A / DIN / SMS / RJT / ISO / IDF
Operated:	Pneumatic
Design	The stem can be completely cleaned
Stem wash	Stem can be sterilized by cleaning fluid or steam
Function	Have all function of standard divert seat valve
Body seat	Single seat
Structure	Aseptic type
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Certificate
3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

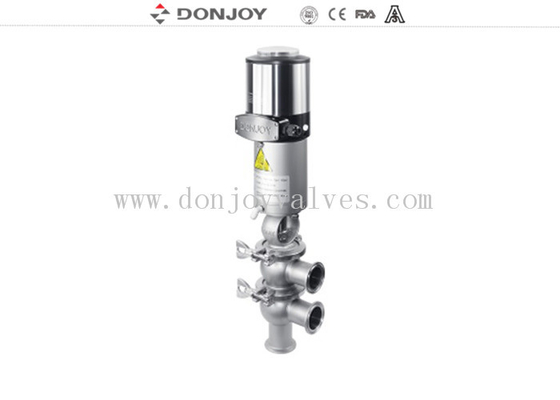

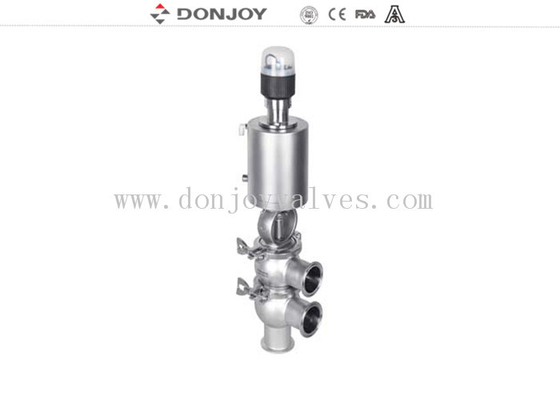

Product display
