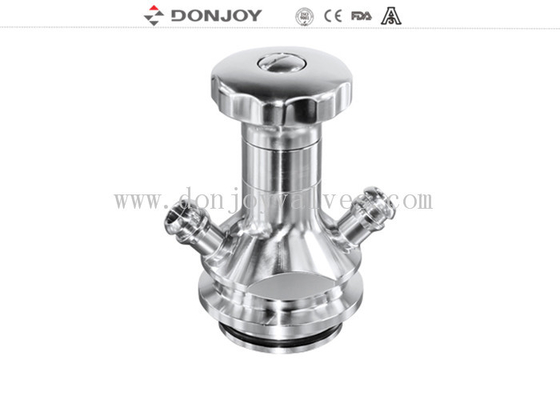

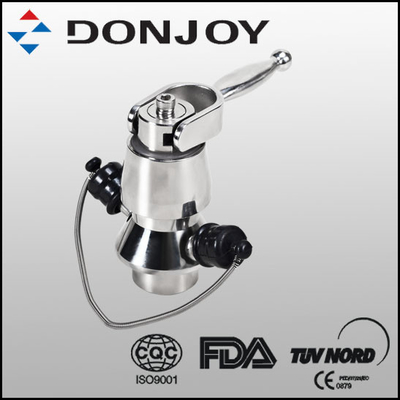

Automaitc return handle Aspetic Sampling Valve with welded Connection

Large Image : Automaitc return handle Aspetic Sampling Valve with welded Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	ASEPTIC MODEL

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	WOODEN CASE, CARTONS
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	12.7mm,1/2"mm
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped
Polished:	Mirror, Matt
Highlight:	sanitary sample valve , sampling valve stainless steel

Automaitc return handle Aspetic Sampling Valve with welded Connection,SS316L,

Quick Detail

Sampling Valve

Size:12.7mm,1/2"

Type: Pnuematic

Gasket: EPDM,PTFE

Working Pressure:6Bar

Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm

Specification

Product Name:	Pneumtic Aspetic Sampling Valve with Clamp Connection,SS316L,
Material:	AISI304, AISI316L
Size:	1/2"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded,Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Installation

The aseptic sampling valve is designed for sterilization before and after each sampling.

Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.

Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.

Handle:(1) Turning handle (2) removable key

Application:

The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .

Tag:

Contact Person: Jasmine Zhuang

Tel: 86-18967799769

Fax: 86-577-86998000
