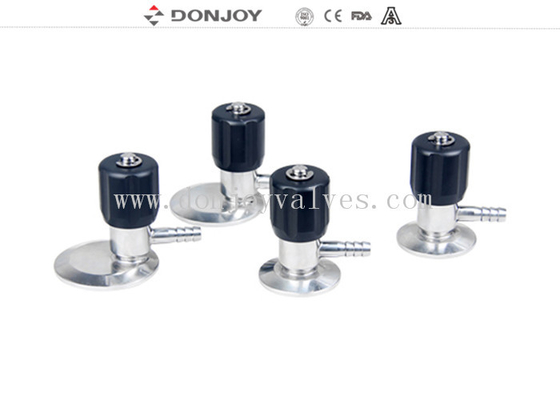

Concentric Sanitary Stainless Steel Sample Valve Polished

Large Image : Concentric Sanitary Stainless Steel Sample Valve Polished

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	Normal modle

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	WOODEN CASE, CARTONS
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	12.7mm,1/2"mm
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped,Thread
Polished:	Mirror	Corlor:	Siliver
Highlight:	Polished Stainless Steel Sample Valve , Sanitary Stainless Steel Sample Valve , Concentric Stainless Steel Sample Valve

SS316 Concentric non-retention clamp connection sampling valve

Specification

Product Name:	Sanitary Stainless Sample valve Clamped Connection,SS304/ss316L
Material:	AISI304, AISI316L
Size:	12.7mm,1/2",3/8",1/2",3/4"
Type:	Manual
Gasket:	EPDM,PTFE
Working Pressure:	6 bar
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded,Clamped
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Introduction

Its mainly applied to extract sample from tank or pipeline, it also can be assembled at the bottom of the tank or pipeline to drain away the remains. when turn the hand wheel clockwise, the valve shaft and seal rise up , At this time , valve is open for sampling, When trun the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.
