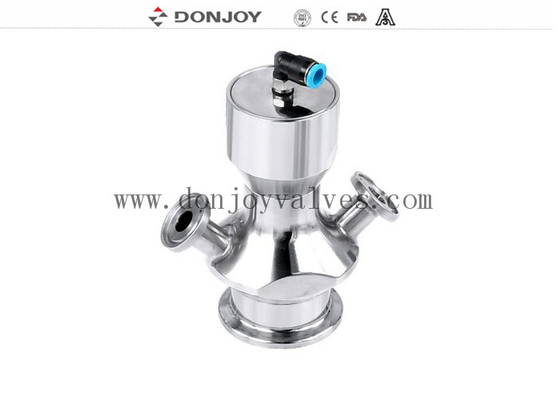

DIN SS316L Pneumatic Aseptic Sample Valve With Clamp Connection

Large Image : DIN SS316L Pneumatic Aseptic Sample Valve With Clamp Connection

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	ASEPTIC MODEL

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	WOODEN CASE, CARTONS
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	12.7mm,1/2"mm
Stanadard:	DIN,3A,SMS,ISO	Connection:	Welded, Clamped
Polished:	Mirror, Matt
Highlight:	Pneumatic Aseptic Sample Valve , SS316L Aseptic Sample Valve , Clamp Connection Aseptic Sample Valve

SS316L Pneumtic Aspetic Sampling Valve with Clamp Connection for sampling

Quick Detail

Sampling Valve

Size:12.7mm,1/2"

Type: Pnuematic

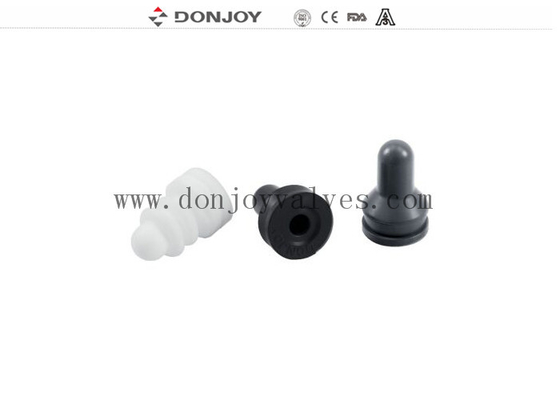

Gasket: EPDM,PTFE

Working Pressure:6Bar

Connection: Thread, pipe welding, tank welding, clamp...

Sample port selection: Hoses, welding, clamp, thread, Boss end.

Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm

Specification

Product Name:	Pneumtic Aspetic Sampling Valve with Clamp Connection,SS316L,
Material:	AISI316L
Size:	1/2"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded,Clamped, Thread...
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Extracting Sample Valves Biological pharmacy sanitary grade aseptic valve

The aseptic sampling valve is designed for sterilization before and after each sampling.

Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the
lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

Drawing

DIN SS316L Pneumatic Aseptic Sample Valve With Clamp Connection 0

DIN SS316L Pneumatic Aseptic Sample Valve With Clamp Connection 1

Valve body with various configurations

DIN SS316L Pneumatic Aseptic Sample Valve With Clamp Connection 2
