EPDM PTFE Gasket Pneumatic Sanitary Diaphragm Valve

EPDM PTFE Gasket Pneumatic Sanitary Diaphragm Valve

    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO. G-H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: SS Pneumatic Tank Bottom Diaphramg Valve Materials: SS316L / 1.4404
    Size: 1'' - 4'', DN25 - DN100 Operation: Pneumatic
    Connection: Weld Gasket: EPDM + PTFE
    Structure: Three Ports With One Or Two Control Valve Application: Be Installed On Tank
    High Light:

    Pneumatic Sanitary Diaphragm Valve


    PTFE Gasket Sanitary Diaphragm Valve


    EPDM Gasket Sanitary Diaphragm Valve

    EPDM/PTFE FDA Gasket Pneumatic Tank Bottom Sanitary Diaphragm Valve with Regulating control head



    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene andaseptic processes in the pharmaceutical industries.

    The valve is excellent for flow control as well as open/close control

    The diaphragm valves are better in feature of flow in comparison with other valves.
    It is eaiser to clean up and better to process the substance with particles.
    The phenomenon of air pocket is rare during application of flow control.



    Product Name:

    Pneumatic Tank Bottom Valve with Stainless Steel  Actuator


    Single diaphragm:sillcone/EPDM/FPM gasket

    One piece adhesive diaphragm: PTFE+EPDM

    Two pieces: PTFE+EPDM

    Mini-type: single (EPDM/ SILICONE/ FPM)


     Max.Working Temperature:

     -30degree c to 130 degree c (depending on diaphragm)

     Max.Working Pressure:

    6 bar to 8 bar(depending on diaphragm)

     Valve body

    Casting body or forging body 1.4404/316L

     Available size:

    DN25-DN100, 1 inch- 4 inch

     Available connection:

    Clamp / welding / special connection

     Available standard:

    3A /BPE / DIN / ISO / IDF


    Manual, Pneumatic

     Available structure:

    tank bottom valve, tank bottom valve with sampling valve


    Smart valve positioner / C-TOP control / position sensor


    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

     Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc


    Three ports with two control valves

    Three ports with one control valves

    Body type



     Various configuration of Diaphragm valve
    Pneumatic Operation

    1.Stainless steel actuator
    2. Plastic actuator

    3. IL-TOP positioner

    4. C-TOP controller

    5. Positioner sensor

    Manual Operation
    6. Plastic Handle
    7. Stainless steel handle
    Valve Body Material
    8. Body: Casting / Forging
    Valve positioner Technical specifications:


    Power supply:DC 24V

    Signal input:0/4-20mA, 0-5/10V(standard)

    Output feedback:4-20mA, 0-10V(option)


    Actuator:plastic and stainless steel

    grade: IP67


    Product drawing

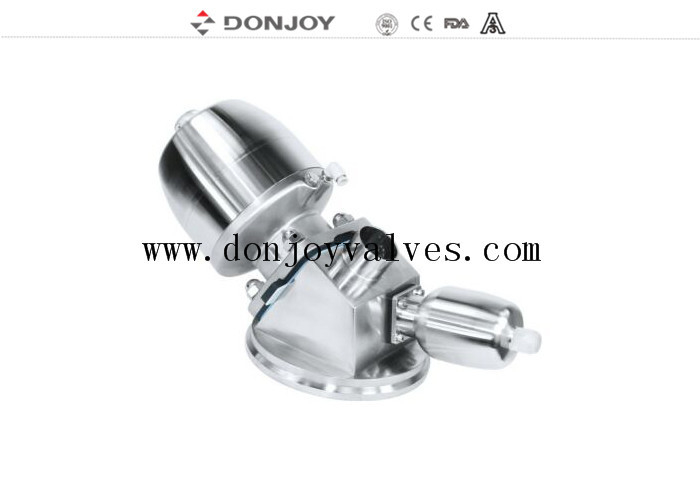

    EPDM PTFE Gasket Pneumatic Sanitary Diaphragm Valve 0

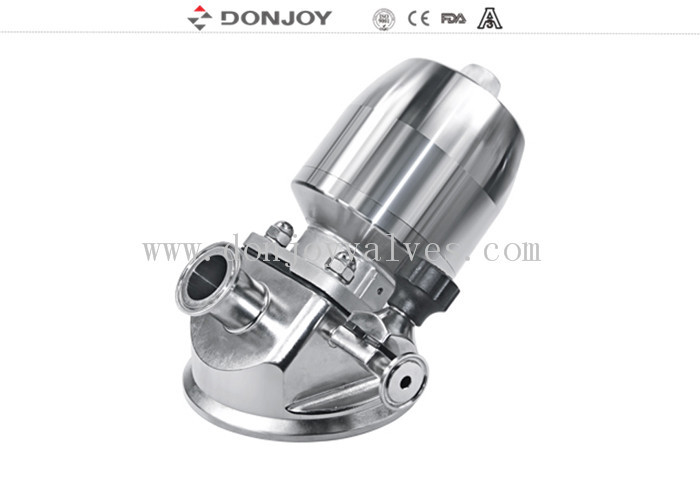

    EPDM PTFE Gasket Pneumatic Sanitary Diaphragm Valve 1
    Product display

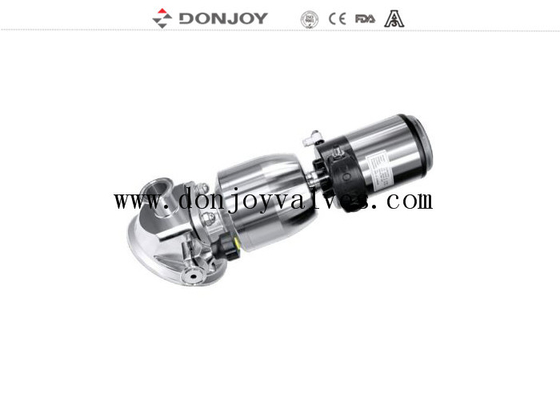

    EPDM PTFE Gasket Pneumatic Sanitary Diaphragm Valve 2
    Tag: Diaphragm valve, Pneumatic valve, Tank bottom valve
