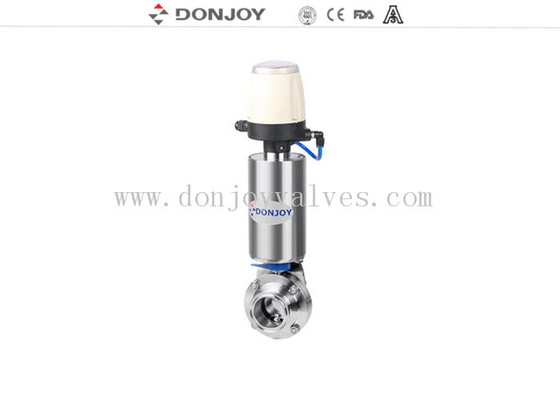

FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control

FDA Stainless steel sanitary grade butterfly valves for fluid control

Specifications


Classification
Mixture proof butterfly valve;
Double seat butterfly valve;
Single seat butterfly valve;

Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;

Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Drawing
