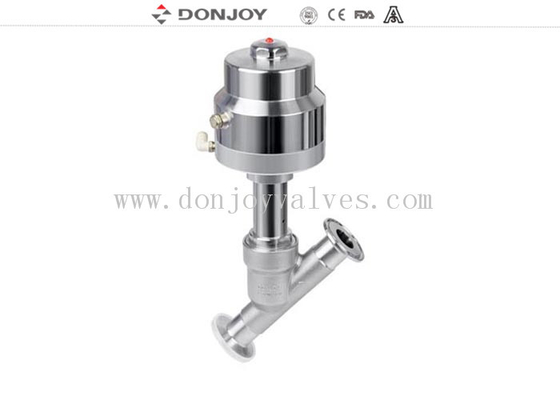

Fluid Regulating Globe angle Seat Valve With stianless steel actuator
specifications:
| Product Name: |
Plastic Handle SS304/SS316L Angle Seat Valve for fluid regulating and controlling |
| Valve Body Material: |
CF8M/316L,CF8/304 |
| Seal Material: |
EPDM |
| Working Pressure: |
8 Bar, 10Bar(option). |
| Max. Working Temperature: |
120 degree ,180Degree(Option) |
| Availably size: |
DN10-DN80,1/2"-3" |
| Availably connection: |
Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: |
Maual |
| Certificate: |
FDA,CE,ISO |
Description
A new generation of high purity design of the angle seat valve
1. No dead angle, no retention to meet the requirements of all kinds of health.
2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;
3. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.
Operation Options for Seat Valve

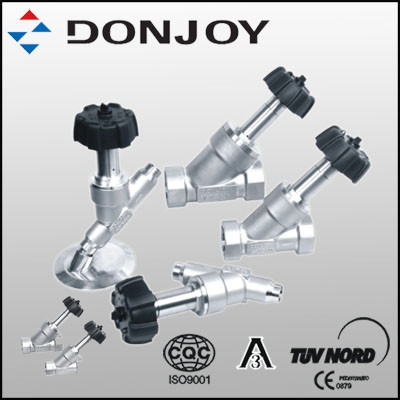

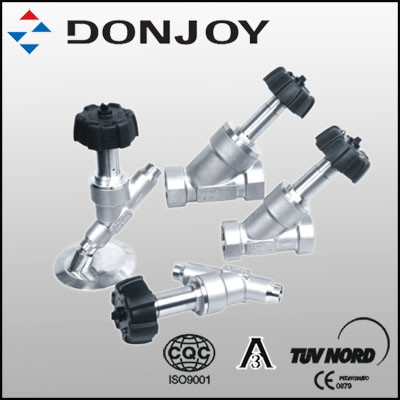

1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1. Seat valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Tag:Angle seat valves, Sanitary valves, Donjoy valves
