Food grade stainless steel threaded sanitary butterfly valve 1" to 12"

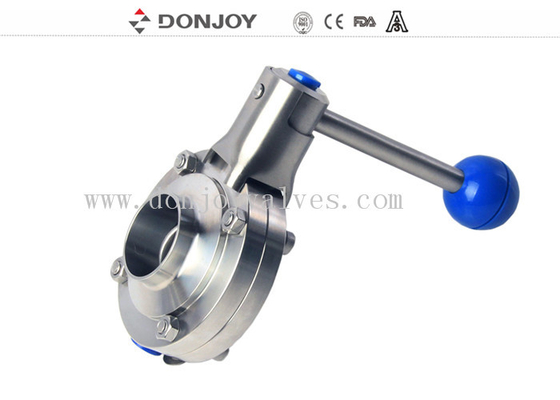

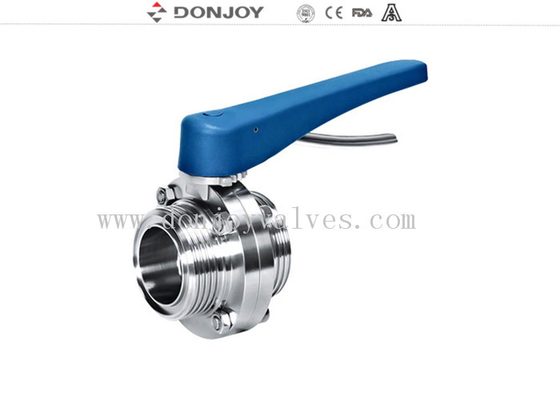

Large Image : Food grade stainless steel threaded sanitary butterfly valve 1" to 12"

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Food Grade Stainless Steel Thread Sanitary Butterfly Valve	Materials:	SUS304 / SUS316L
Size:	DN10 - DN300, 1/2" - 12"	Operation:	Plastic Multi - Position Handle
Connection Mode:	Threaded Etc.	Structure:	Multi - Position Handle And Butterfly Valve
Motion Mode:	Manual Mode	Butterfly Plate:	Forged
Highlight:	sanitary butterfly valve , pneumatic butterfly valve

Food grade stainless steel threaded sanitary butterfly valve of sanitary level with handle for fluid regulation

Tag:
Tri-Clamp Butterfly Valve, Flange Type Butterfly valve, Weld butterfly valve,RJT Male Butterfly valve

Specifications

Product Name:	Food grade stainless steel threaded sanitary butterfly valve From 1inch to 6inch
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
MaxWorking Pressure:	5Bar
Max.Working Temperature:	120 degree C
Available size:	DN10-DN300, 1/2"-12"
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle, Loackable Handle
Control:	Smart valve positioner / C-TOP control/position sensor, Il TOP
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Model of plastic multi - position handle:	NO. VSB04 / NO.VSB06 / NO.VSB08
Installation of handle:	On one side of valve

Connection
Clamped, welded and threaded, ANSI Flange,

Application :
Dairy produce,brewery,food,pharmacy,beverage,cosmetics,chemical industry,etc

Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Various handles
Two-position handle; (Pull Handle )
three-position handle;(Pull Handle )
four-position pull handle; (Pull Handle )
multi-position plastic handle;
multi-position stainless steel handle, this handle can be lockable.
