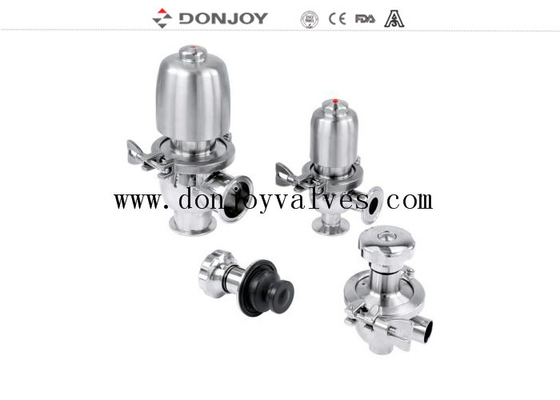

Hygienic Pneumatic Tank Sanitary Diaphragm Valve With EPDM Gasket

Large Image : Hygienic Pneumatic Tank Sanitary Diaphragm Valve With EPDM Gasket

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	NO.VGJ100Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Tank Bottom Diaphragm Valve	Materials:	SS316L / 1.4404
Size:	3/4"-2.5"	Connection:	Threaded ( BSP / BSPT / NPT ),clamp,weld
Gasket:	Sillcone / EPDM	Manual:	SS Hand Wheel , Plastic Hand Wheel
Pneumatic:	SS Actuator , Plastic Actuator
Highlight:	Pneumatic Tank Sanitary Diaphragm Valve , Hygienic Sanitary Diaphragm Valve , EPDM Gasket Sanitary Diaphragm Valve

316L stainless steel hygienic pneumatic tank bottom diaphragm valve with aspetic

Radial diaphragm valve are mainly manual and pneumatic operations, Inside body finished Ra≤ 0.5μm, in order to meet the requirement of biophamaceutical industry.

Specifications

Product Name:	Tank bottom diaphragm valve
Valve Body Material:	SS316L
Seal Material:	EPDM
Max Working Pressure:	6Bar
Max.Working Temperature:	-10 to 120 degree
Available size:	3/4"-2.5",DN20-DN65
Available connection:	Clamp / welding / thread / special connection
Available standard:	3A / BPE / DIN / ISO / IDF
Operation	Manual, pneumatic
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc

●Mainly used in pharmaceutical, biotechnology, health care, cosmetics and food industry etc.
●In the pharmaceutical industry, the valve can be used as process control valves, dosing valves, sampling valves and sterile drain valve, etc.
●In the food industry, the valve is often used as the guiding device, such as sampling valve, dosing valve (such as adding CO2/Nitrogen to beer, add seasoning to drink). Radial diaphragm valves, mainly manual and pneumatic valve body, internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of bio pharmaceutical industry.
●Size:3/4"-2.5",DN20-DN65
●Working temperature:-10℃-120℃(EPDM/Silcon)
●Max.Pressure:6bar
●operation:Manual / pneumatic interchangeable
●Operating Pressure:5bar-6bar
●Outlet connection: Clamp, weld,Special interface
●New diaphragm design
●Maintenance is simple, safe, easy to operate
●Self emptying function
●Dead angle minimization
●Excellent value KV
●CIP/SIP Sterilizing and cleaning

Hygienic Pneumatic Tank Sanitary Diaphragm Valve With EPDM Gasket 0
Product drawing

Relation Products

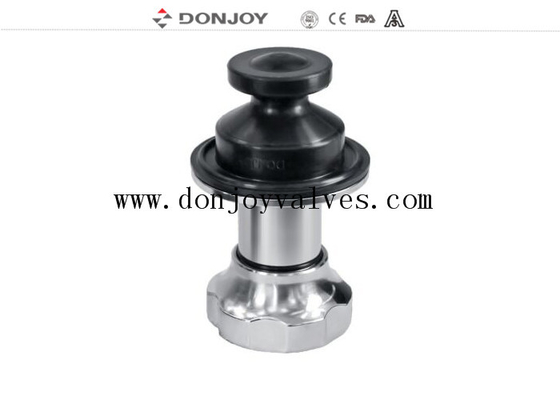

Hygienic Pneumatic Tank Sanitary Diaphragm Valve With EPDM Gasket 2

Tags : Diaphragm valve, Saniary valves, Donjoy Valves , tank bottom valve
