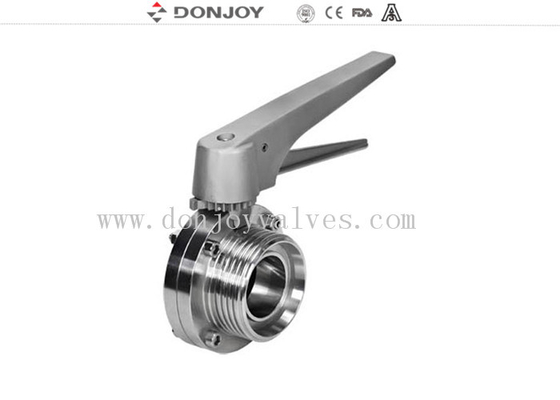

Manual Thread sanitary Butterfly Valve with stainless steel multi-position handle

Large Image : Manual Thread sanitary Butterfly Valve with stainless steel multi-position handle

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box or wooden box
Delivery Time:	5-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Product Name:	Multi - Position Stainless Steel Handle Clamped Butterfly Valve	Materials:	304 / 316L
Size:	1 Inch - 6 Inch	Operation Mode:	Manual
Connection:	Thread	Structure:	With Multi - Position Stainless Steel Handle
Level:	Sanitary Level
Highlight:	stainless butterfly valves , pneumatic butterfly valve

Multi-position manual clamped sanitary butterfly valves with stainless steel handle

Specifications

Product Name:	Multi-position manual clamped sanitary level butterfly valve with stainless steel handle
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	5Bar
Max.Working Temperature:	120 degree C
Available size:	1''-6'', DN25-DN150
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Installation:	Could be installed on various valves
Multi-position handle:	Of different level which could be chosen according to your requirement

Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle

Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Explanation

Manual Thread sanitary Butterfly Valve with stainless steel multi-position handle 0
