Pneumatic Sanitary Diaphragm Valve Stainless Steel 316 Forged Body Double Acting

Large Image : Pneumatic Sanitary Diaphragm Valve Stainless Steel 316 Forged Body Double Acting

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Pneumatic Direct Way Diaphragm Valve	Materials:	SS316L / 1.4404
Size:	1'' - 4'', DN25 - DN100	Operation:	Plastic Actuator
Connection:	Clamp / Weld / Thread	Gasket:	EPDM + PTFE
Valve Position:	Optional Combination	Pneumatic:	Single Acting/Double Acting
Highlight:	diaphragm check valve , sanitary sample valve

Pneumatic sanitary diaphragm valve Stainless steel 316 forged body double acting

Tag

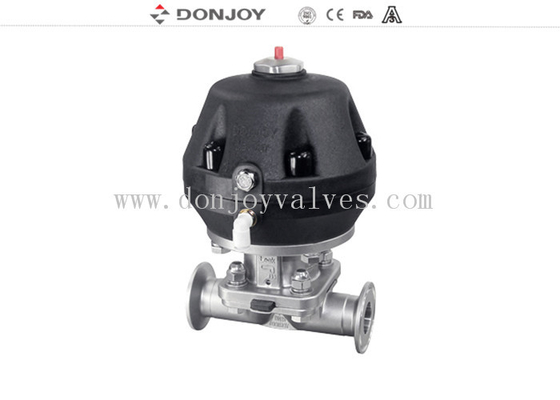

Sanitary Diaphragm Valve with Plastic pneumatic actuator
Multi-function pneumatic diaphragm valve
Double location cylinder pneumatic diaphragm valve

Specifications

Product Name:	Pneumatic sanitary diaphragm valve Stainless steel 316 forged body double acting
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket / Adhesive PTFE+EPDM /Two pieces PTFE+EPDM
MaxWorking Pressure:	8 Bar
Max.Working Temperature:	150 degree C
Availably size:	1''-4'', DN20-DN100
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Valve body:	Forging or casting
Configuration:	Flexible with various valve seat

Various configuration of Diaphragm valve

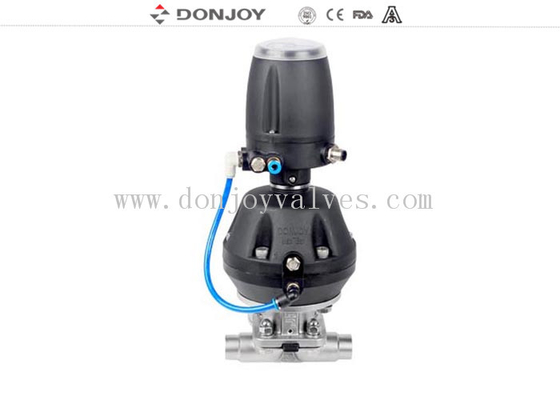

1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)

2. Diaphragm valve with Control Unit (C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

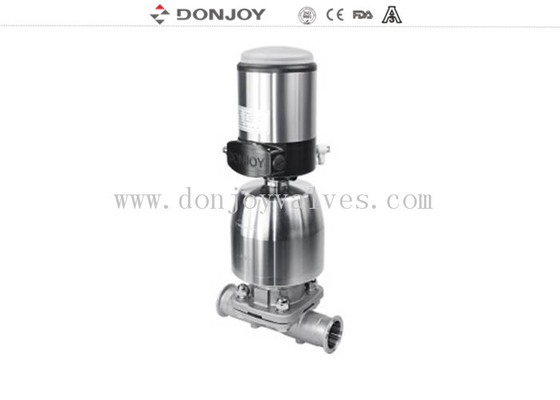

7. Stianless steel acutor

8. Electric Diaphragm valve

Product drawings
Pneumatic Sanitary Diaphragm Valve Stainless Steel 316 Forged Body Double Acting 0

Pneumatic Sanitary Diaphragm Valve Stainless Steel 316 Forged Body Double Acting 1

Tag: Forged diaphragm valve, Sanitary valve, Donjoy diaphragm valve.
