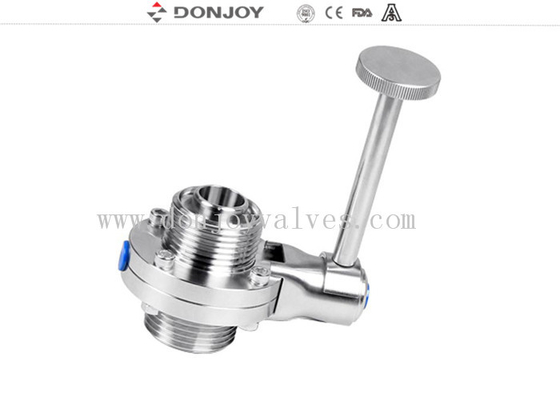

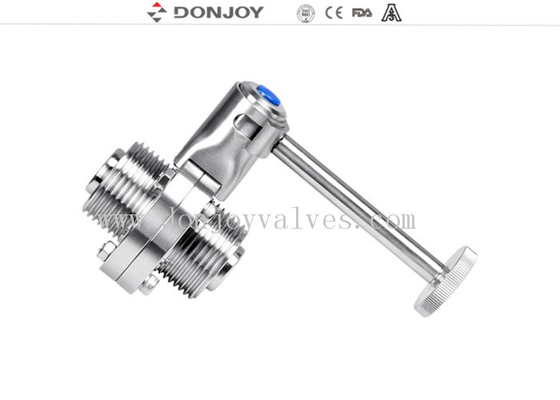

RJT Hex Nut / Thread Manual Butterfly Valves , Female / Male Butterfly Valve

RJT Hex Nut / Thread Manual Butterfly Valves , Female / Male Butterfly Valve

RJT Hex Nut / Thread Manual Butterfly Valves , Female / Male Butterfly Valve

Product Details:

Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 5-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Materials: 304 / 316L Size: DN10 - DN300, 1/2" - 12"
Operation: Plastic Multi - Position Handle Connection Mode: Threaded Etc.
Structure: Multi - Position Handle And Butterfly Valve Appication: Food,Milk, Beer...
High Light:

stainless butterfly valves

,

pneumatic butterfly valve

RJT Hex Nut / Thread Manual Butterfly valve, Female / Male Butterfly Valve


Technical Specifications
Max.Pressure: 10Bar(DN25-DN100), 8Bar (DN125-DN150), 5Bar( DN200-DN300)
Min. Pressure:0.2Bar
Working Temperature: -10C° to +120 Degree( EPDM)



Specifications

Product Name:

RJT Hex Nut/Thread Manual Butterfly valve SS316L/304,

Female/Male Butterfly Valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

MaxWorking Pressure:

5Bar

Max.Working Temperature:

120 degree C

Available  size:

DN10-DN300, 1/2"-12"

Connection

Thread, Flange, Weld, Clamp..



Body: Made of forged material.Fully precision machined by CNC machine..
Connection: clamp end and weld end Male end, female end are available from 1/2", 3/4" up to 4".
Disk: Made of forged material.Fully precision machined by CNC machine.
Material grade:304, 316L
Size range:From 1/2", 3/4" up to 12".
Seal(Gasket): EPDM, SILICON, VITON
Design and FeaturesCompact and robust Design
Available sizes DN25-DN300(1/2"-12")
Multi-Position handle is suitable up to DN100/4"
Pull hand is suitable up to DN25-DN300(1/2"-12") PED97/23EC FDA.177.2600
The valve body can be changeable with any kind of connection


Description
Our Butterfly valve body could be offered with Clamp end, Weld end, Male end, female end.
The different handle of 4 positions, 12 position and other styles that you inquired or actuator for your widely used. Butterfly valve body and disk are all made from full CNC machined, high polished that demanded with the high quality in the developed country around the world.


Application
Butterfly valve, no matter manually or automatically, can be used in food-processing,pharmacy and chemical industries.It is necessary you specify at the time of order heat numbers and MTR's are required.
Material Test Reports (MTR's) are available to document all heat numbers.


Operating Torque(N.M)

DN25/1"

DN40/1.5"

DN50/2"

2.5"

DN65

3"

DN80

DN100/4"

DN125

DN150

3

4

5

10

12

14

18

25

40

55



Packing Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.
If you need more information, Please do not hesitate to contact us.
