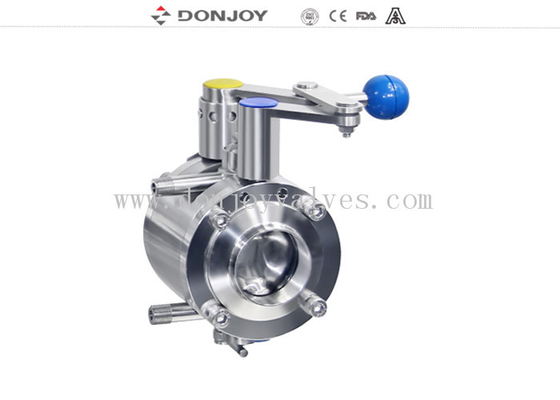

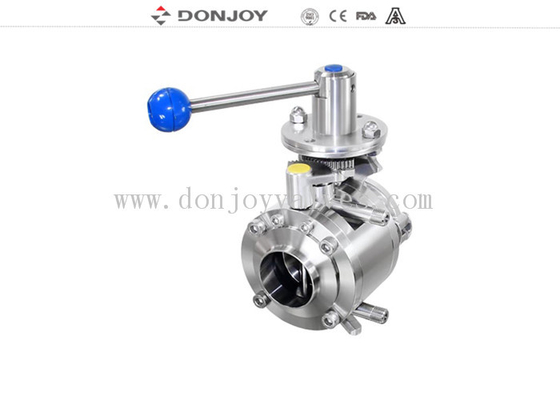

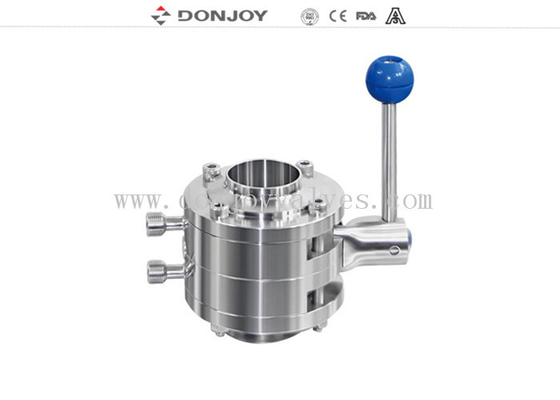

Sanitary stainless steel butterfly valves , 4" Manual mixing proof butterfly valve

Sanitary stainless steel butterfly valves , 4" Manual mixing proof butterfly valve

    • Sanitary stainless steel butterfly valves , 4" Manual mixing proof butterfly valve
    • Sanitary stainless steel butterfly valves , 4" Manual mixing proof butterfly valve
    • Sanitary stainless steel butterfly valves , 4" Manual mixing proof butterfly valve
  • Sanitary stainless steel butterfly valves , 4" Manual mixing proof butterfly valve

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VDF300S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box or wooden box
    Delivery Time: 5-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Sanitary Butterfly Valve Materials: 304/316L
    Size: DN50-DN100,2"-4" Operation: Manual Pull Handle
    Max Pressure: 10Bar Gasket: EPDM, SILICONE,VITION
    High Light:

    stainless butterfly valves

    ,

    pneumatic butterfly valve

    4" Manual mixing proof stainless butterfly valve, industrial ss butterfly valve

    Specifications

    Product Name:

    4" Manual mixing proof sanitary butterfly valves Stainless steel 304 /316L

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    Max Working Pressure:

    10Bar

    Max.Working Temperature:

    120 degree C

    Available  size:

    DN50-DN100,2"-4"

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual,Pneumatic, Electric

    Handle application:

    Two-position handle / three-position handle / four-position pull handle / multi-position plastic handle / multi-position stainless steel handle

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharm

    Grade of handle:

    3 - grade


    Type:Double seat butterfly valve Type A, Double seat butterfly valve Type B
    Operation: Pneumatic, manual interchangeable, C-Top Basic, C-Top+AS-1 Communication
    Design and Features


    Compact and robust design
    Interchangeable half -bodies(any connection Type)
    Connection: Weld DIN11850,Clamp DIN32676,Thread din11581,Weld ASME BPE, Clamp asme BPE


    Application
    Double seat butterfly valves can be used in food-processing pharmacy and chemical industries. Leakage butterfly valve offers an easy and safe separation of products and prevents accidental mixing in case of gasket failure. The most usual applications are the ones that require safe separation of the products and CIP solution in a single point(not in manifolds), or at the end of a manifold(e.g CIP return) or entry of a CIP solution into a tank(through a spray ball)


    Packaging Details
    Bubble pack for each valve.
    Outside packing is carton or plywood cases.
    Or as per the request of customers.


    Delivery details
    Usually within 20 days after receiving T/T down payment.
