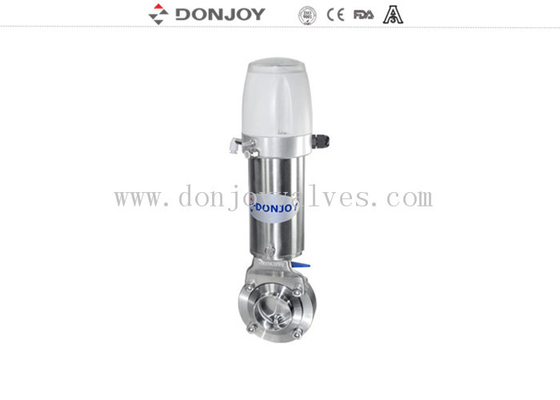

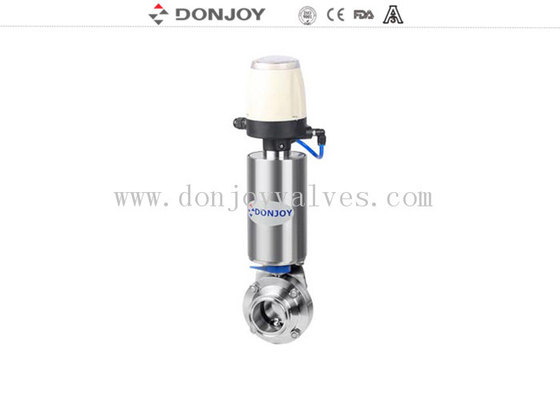

Hygenic DN25 316L single-acting normal close clamp ends stainless steel pneumatic butterfly valve
Technical Specifications
Max.Pressure: 10Bar, DN10-DN300
Min. Pressure:0.2Bar
Working Temperature: -10C° to +120 Degree( EPDM)
Specifications
|
Product Name:
|
Hygenic DN25 316L single acting normal close clamp ends stainless steel pneumatic butterfly valve |
|
Valve Body Material:
|
SS304/316L
|
|
Seal Material:
|
EPDM (standard) FPM/SILICON/NBR, FDA177.2600
|
|
MaxWorking Pressure:
|
10Bar
|
|
Max.Working Temperature:
|
120 degree C
|
|
Availably size:
|
DN10-DN300, 1/2"-12"
|
|
Availably connection:
|
Clamp/welding/thread/special connection
|
|
Availably standard:
|
3A/DIN/SMS/RJT/ISO/IDF
|
|
Operated:
|
Single acting or double acting
|
|
Handle application:
|
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position
stainless steel handle
|
|
Control:
|
Smart valve positioner / C-TOP control / position sensor
|
|
Certificate:
|
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic, etc
|
|
Pneumatic actuator type:
|
Plastic actuator, stainless steel pneumatic actuator
|
|
Surface finishing
|
RA≤0.8um
|
Design and Features
Compact and robust Design
Available sizes DN10-DN300(1/2"-12")
Multi-Position handle is suitable up to DN100/4"
Pull hand is suitable up to DN25-DN300(1/2"-12")
The pneumatic actuator is suitable up to DN300,12"
PED97/23EC
FDA.177.2600
The valve body can be changeable with any kind of connection
Connection
Clamped, welded and threaded etc.
Application
Used in food-processing, pharmacy and chemical industries.
Operating Principles
Can be operated automatically through an actuator or manually with the handle
The handle blocks the valve in the OPEN or CLOSED position, certainly, there are the other positions available.
The actuator pushes the piston of axial movement into 90degree so that it controls the butterfly valve.
Various handles
1. Pull Handle
2, Multi-Position Handle(Blue Plastic)
3.Multi-Position Handle (Stainless Steel) Lockable
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Operating Torque(N.M)
|
DN25/1"
|
DN40/1.5"
|
DN50/2"
|
2.5"
|
DN65
|
3"
|
DN80
|
DN100/4"
|
DN125
|
DN150
|
|
3
|
4
|
5
|
10
|
12
|
14
|
18
|
25
|
40
|
55
|
