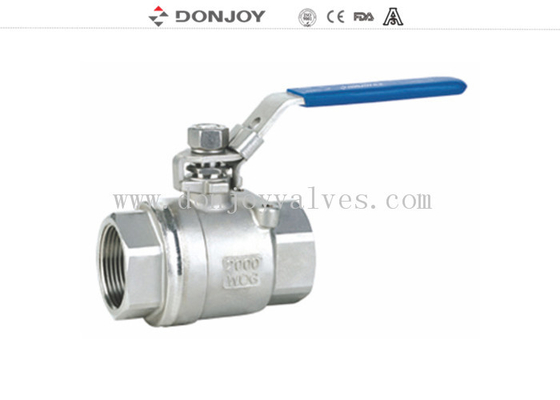

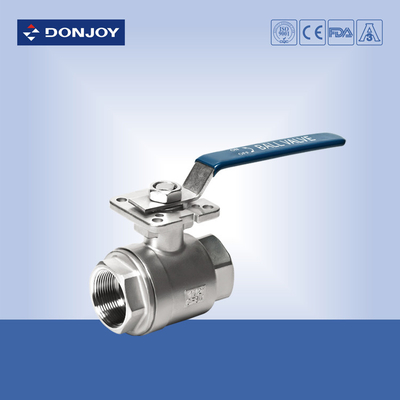

SS304 2 Peice Sanitary Ball Valve With manual plastic handle

Large Image : SS304 2 Peice Sanitary Ball Valve With manual plastic handle

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VQD100Q2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	2pcs Industrial Ball Valve	Size Of Panel:	DN10-DN100,1/2"-4"
Operation:	Pneumatic, Control Head,Manual	Media:	304/316L
Connection:	Welded, Clamped, Thread, Flange	Certificate:	FDA,CE,3A
Highlight:	electric ball valve , stainless steel ball valve

SS304 2 Peice Sanitary Ball Valve With manual plastic handle

Detail:

2pcs female ball valve

Connection: Clamped, Thread, Welding,can be installed with actuator

The structure of the ball valve: One piece, Two pieces, Three piece and Flanged type, etc.

Specification

Product Name:	SS304,2 Peice industrial Ball valve With manual plastic handle BSP Thread
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN25-DN100 or 1" - 4"
Availably connection:	Weld,Clamp,Thread,
Availably standard:	FDA,CE,3A
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Applicable media	Z41H-(16-64)C Water: Oil, Gas Z41H-(16-64)C Nitric Acid Z41H-(16-64)C Acetic Acid
Certificate:	FDA,CE,3A,ISO

Applications:
The series of ball valve is mainly used in industrial fields of gasoline, chemical, hydraulic, food and beverage, etc.
The ball valve can be operated by handle or by actuator automatically
The structure of the ball valve: One piece, Two pieces, Three piece and Flanged type, etc.
The Connection: Threaded, welded, clamped, flange etc.

Technical specification

Pressure: PN1.6-6.4Mpa, Class 1.5/300, 10K/20K
Strength testing pressure: PT1.5PN
Applicable media:
Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)C Nitric Acid
Z41H-(16-64)C Acetic Acid
Applicable temperature: -40-180 degree

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
