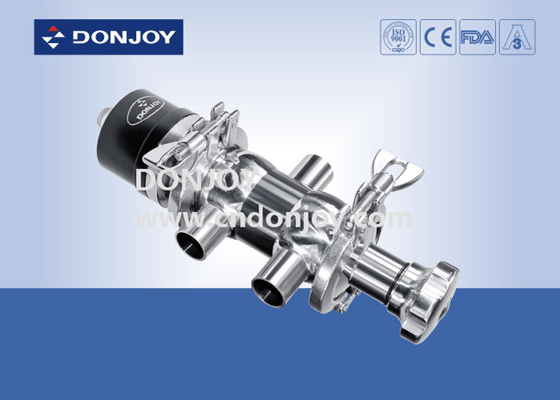

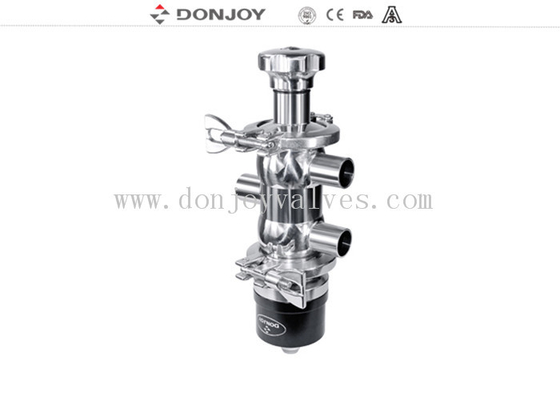

SS316 Multiport Radial Diaphragm Valve with manual / pneumatic interchangeable

Large Image : SS316 Multiport Radial Diaphragm Valve with manual / pneumatic interchangeable

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Multiport Radial Diaphragm Valve With Manual/pneumatic Interchangeable	Function:	For Conveying Water Etc.
Actuator Pressure:	5bar To 6bar	Gasket Optional:	EPDM/ FPM/ PTFE
Actuator:	Single/ Double Acting	Valve Body:	Tank Bottom Valve Body
Highlight:	diaphragm check valve , 3 way diaphragm valve

SS316 Multiport Radial Diaphragm Valve with manual/pneumatic interchangeable

Specifications

Product Name:	SS316 Multiport Radial Diaphragm Valve with manual/pneumatic interchangeable
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM
MaxWorking Pressure:	6 Bar
Max.WorkingTemperature:	120 degree C
Availably size:	3/4''-2.5'', DN20-DN65
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Manual,Pneumatic
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Plastic actuator:	With indicator light
Size of clamp:	According to your valve

Description
Various configuration of Diaphragm valve
1.Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.Diaphragm valve with Control Unit(C-Top)
3.Valve position Regulator
4.Position Sensor Module
5.Plastic Handle
6.Stainless steel handle
7.Stianless steel acutor
8.Electric Diaphragm valve
9.Plastic Acutor
10.Body: Casting / Forging

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Drawing
Please check the size form below for detailed information.
