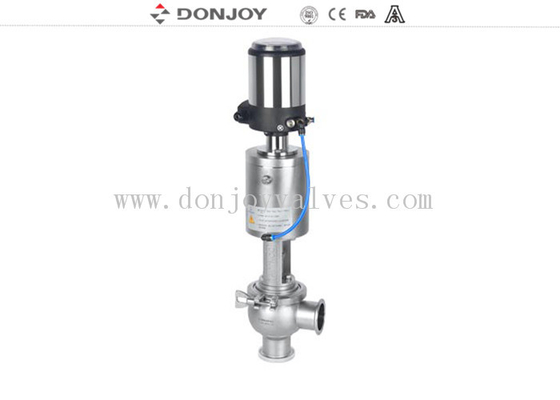

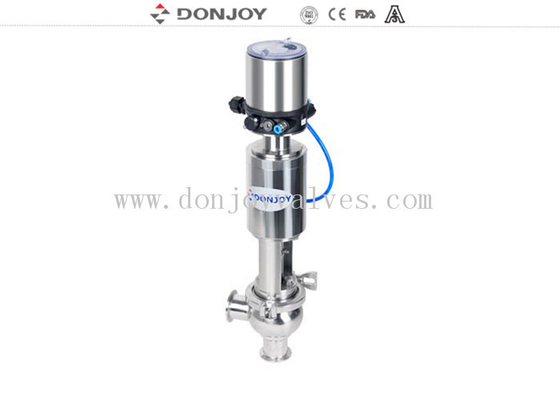

SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner

SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner

    • SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner
    • SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner
  • SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VTJ111Q1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: Regulating Valve With Actuator Size Of Panel: DN25 - DN100 Or 1" To 4"
    Operation: Pneumatic With Control Head Materials: Stainless Steel
    Media: 304 / 316L Gasket: EPDM
    Feature: Precise Control
    High Light:

    ball valve diaphragm

    ,

    pressure reducing valve

    SS316L / SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner



    Specifications:

    Product Name:

    SS316L / SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner

    Valve Body Material:

    AISI304, AISI316L

    Seal Material:

    EPDM/FPM(Optional)

    Working Pressure:

    10Bar

    Max. Working Temperature:

    120 degree C

    Available  size:

    DN25-DN100 or 1" - 4"

    Available connection:

    CLAMP, DIN, SMS

    Air Operation:

    can be configured to intelligent/C-TOP controller

    Operate:

    Pneumatic

    Characteristic

    Prescise regulation

    Certificate:

    FDA,CE

    External surface finish:

    CNC fine machining



    Description:
    Options for Regulating Valve
    Heat Jacket type regulating valve
    Diaphragm-Aseptic Regulating valve
    Non-Retention Regulating Valve
    Aseptic Regulating valve
    Deadline regulating valve
    Manual Regulating valve
    High pressure actuator regulating valve
    Body Combination Type: 20,30,11,12,21A,22A

    Applications:
    Regulating valve is a pneumatic Proportional valve, is a equipment to control the flow, widely used to the dairy,food, beverage,pharmacy and chemical industry. Most important application is the pressure control, flow control, level,ect.

    Operating Principles
    The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)

    Product data

    SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner 0



    Product display

    SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner 1

    SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner 2

    SS316L/SS304 DN 50 Pneumatic Regulating Valve with Intelligent Valve Positioner 3
