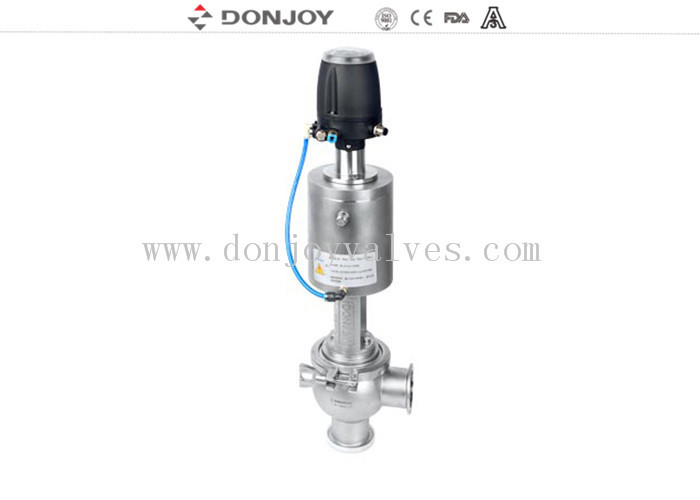

SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset

SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset

    • SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset
    • SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset
  • SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VTJ111Q1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: Regulating Valve Size Of Panel: DN25 - DN100
    Operation: Pneumatic Materials: Stainless Steel
    Media: 304/316L Gasket: EPDM
    Installation: With Actuator Or Positioner Connection:: CLAMP, DIN, SMS
    High Light:

    diaphragm actuator valve

    ,

    pressure reducing valve

    SS 304 3 Inch Aseptic Pneumatic Reversing Valve with Single Seat EPDM Gakset


    Applications
    Regulating valve is a pneumatic Proportional valve, which is an equipment to control the flow.It's widely used to the dairy, food, beverage, pharmacy and chemical industry.The most important application is in pressure control, flow control, level ect.



    Specifications

    Product Name:

    SS 304 3 Inch Aseptic Pneumatic Reversing Valve with Single Seat EPDM Gasket

    Valve Body Material:

    AISI304, AISI316L

    Seal Material:

    EPDM(Standard)/FPM

    Working Pressure:

    10Bar

    Max. Working Temperature:

    120 degree C

    Available  size:

    DN25-DN100 or 1" - 4"

    Available connection:

    CLAMP, DIN, SMS

    Air Operation:

    can be configured to an intelligent/C-TOP controller

    Operate:

    Pneumatic or Manual

    Certificate:

    FDA,CE

    Structure

    single-seat, double seats



    Design and features

    1.Compact and robust design

    2.Size:1" to 4",DN25 to DN100

    3.Normally close (NC) in the standard version

    4.The valve can be changed (180 degrees) to normal open (NO) by simply reversing the position of the pneumatic actuator

    5.Hygienic design according to 3A standard

    6.360° adjustable body

    7.Easy assemble/disassemble of internal parts by loosening a clamp fastener

    8.Standard weld connection (mm or inch)



    Options

    1. Gasket:FPM(Vition R) in compliance with FDA 177.2600

    2. Connections:DIN,SMS,RJT,IDF

    3. Double acting pneumatic actuator

    4. External position sensor

    5.Stem barrier (if shaft sterilization is required)

    6.Body jacket insulation

    7.Valve position regulator

    8.Double stop actuator

    9.Diaphragm type valve cavity

    10.C-TOP control unit

    11. Surface finish:RA≤0.5UM

    12.Manual operated



    Description
    Options for Regulating Valve
    Heat Jacket type regulating valve
    Diaphragm-Aseptic Regulating valve
    Non-Retention Regulating Valve
    Aseptic Regulating valve
    Deadline regulating valve
    Manual Regulating valve
    High pressure actuator regulating valve
    Body Combination Type: 20, 30, 11, 12, 21A, 22A

    SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset 0

    Technical data

    SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset 1

    FAQ
    Question 1- Are you factory or trading company?
    We are factory.

    Question 2- How about the warranty of your products?
    1 year ,not including quick-wear part.Like O-ring

    Question 3- What’s your payment terms?
    For big amount:By T/T, 30% deposit and the 70% balance to be paid before ship out from DONJOY factory.
    By TT, 50% deposit and the 50% balance to be paid before ship out from DONJOY factory
    For small amount: 100% TT in advance before production

    Question 4- How long is your production time?
    It depends on the quantity of your order. Usually, it takes 15-35 days after we receive your deposit. While for large order, we can work over time to catch up your shipment.

    Question 5- How can I get samples?
    We are honored to offer you samples. The samples can be send by DHL or other international express you want.



    SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset 2

    SS 304 3 Inch Aseptic Pneumatic Reversing Regulating Valve with Single Seat EPDM Gakset 3
