| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Diaphragm Regulating Valve | Size: | DN25-DN300 Or 1" - 12" |
|---|---|---|---|
| Operation: | Manual And Pneumatic Integrated Type | Materials: | SS 304 / 316 |
| Gasket: | EPDM | Function: | Flow Control |
| High Light: | ball valve diaphragm,pressure reducing valve |
||

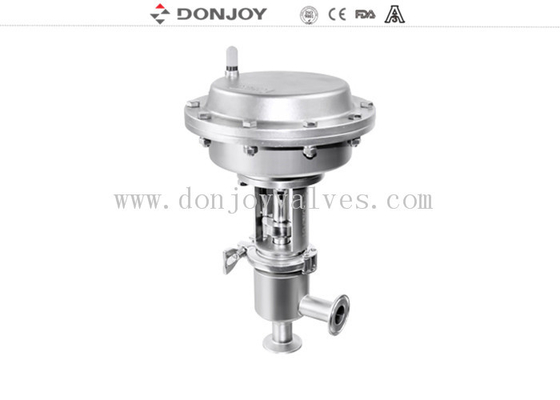

Diaphragm Regulating Valve with manual and pneumatic integrated type
Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A
Specification
|
Product Name: |
Diaphragm Regulating Valve with manual and pneumatic integrated type |
|
Valve Body Material: |
AISI304, AISI316L |
|
Seal Material: |
EPDM/HNBR/VITION(optional) |
|
Working Pressure: |
10Bar |
|
Max. Working Temperature |
-10 degree to 120 degree (EPDM ) |
|
Available size: |
DN25-DN300 or 1" - 12" |
|
Available connection: |
CLAMP, DIN, SMS |
|
Air Operation: |
can be configured to intelligent/C-TOP controller |
|
Operate: |
Manual and pneumatic integrated type |
|
Certificate: |
FDA,CE |
|
Body Combination Type |
20,30,11,12,21A,22A |
|
Compressed air pressure |
6 - 8 bar / 87 - 116 PSI |
Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)
Design and function
Designed according to 3A sanitary standard.
Normally closed valve (standard version)
Adjusting shaft of equal percent
360 degree adjustable valve body
With compact design
Technical features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: EPDM/HNBR/VITON ( optional )
Connection standard: DIN / SMS / RJT / IDF / ISO
Technical data
Tag: High pressure regulating valve, Seat valves, Donjoy Sanitary valves
