Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.VHX100S1-021
Contact Us

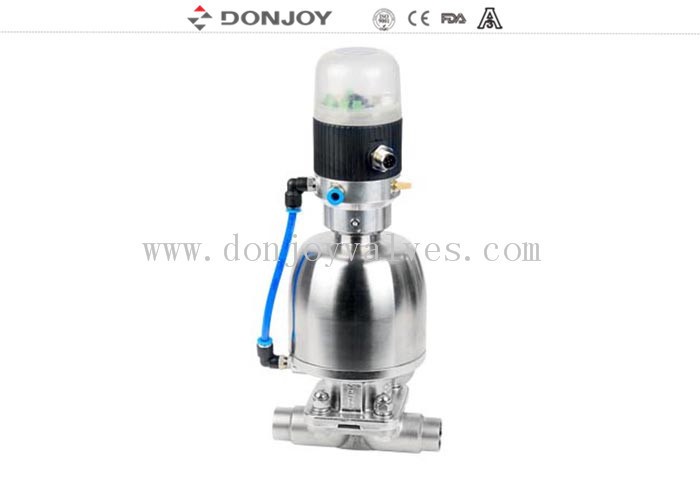

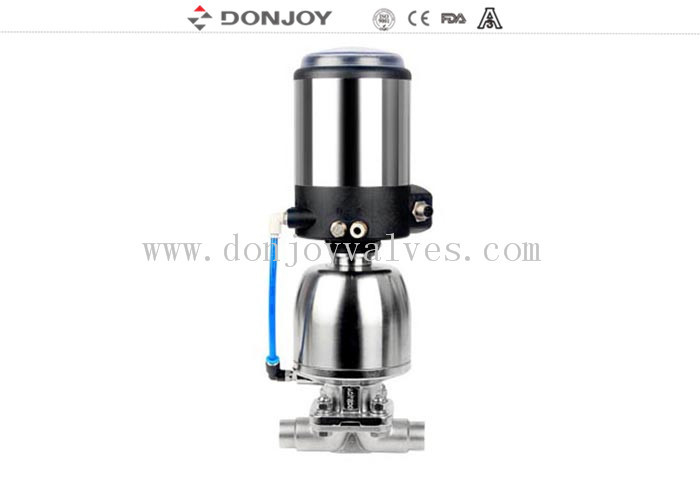

Stainless steel pressure regulating valve DN25-DN100 CE / FDA
Specifications:
|
Product Name: |
Pneumatic Regulating Valve with Control Head |
|
Valve Body Material: |
AISI304, AISI316L |
|
Seal Material: |
EPDM |
|
Working Pressure: |
10 Bar |
|
Max. Working Temperature: |
120 degree C |
|
Available size: |
DN25-DN100 or 1" - 4" |
|
Available connection: |
CLAMP, DIN, SMS |
|
Options |
Could be with positioner |
|
Internal surface finish: |
Ra ≤ 0.8μm |
|
Air Operation: |
can be configured to intelligent/C-TOP controller |
|
Operate: |
Pneumatic |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
Description:
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valvE
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A
Applications:
Regulating valve is a pneumatic Proportional valve, which is an equipment to control the flow.It's widely used to the dairy,food, beverage,pharmacy and chemical industry.Most important application is the pressure control, flow control, level,ect.
Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)
Technical data
Product display
FAQ
Q1: Are you factory or trading company?
A1: We are factory. and we have all kinds of the products.
Q2: Where is your factory located? how can I visit there?
A2: Our factory is located in Wenzhou city, Zhejiang Province,China
Welcome you visit our factory for business negotiation. Please try to contact our staff first by email or telephone. we will make an appointment and arrange the pick up.
Q3: Can your factory print our brand on the product.
A3: Our factory can laser print customer’s logo on the products.
Q4: What is the Warranty for the products?
A4: 1 year,but not including quick-wear parts,like O-ring
Q5: Can we pay using Paypal for the samples? Does it cost extra ?
A5: Sorry we only accept TT.
Q6: Do you charge for samples or freight?
A6: According to our company policy, customers need pay for them, we will return sample charge to you in official order.
Tag : Diaphragm valve with Ftop, Feedback diaphragm valve , Donjoy sanitary valves
