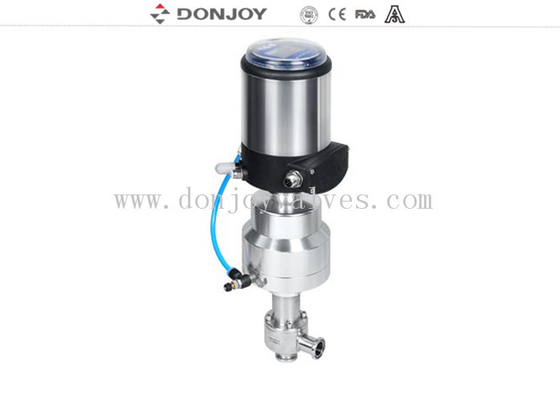

Stainless Steel Pneumatic Actuator Valve For Aseptic Regulating With Controller / Positioner

Large Image : Stainless Steel Pneumatic Actuator Valve For Aseptic Regulating With Controller / Positioner

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Delivery Time:	according to your order
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Item:	Pneumatic Regulating Valve	Function:	Regulating
Feature:	Aseptic	IP Level:	IP67
Air Pressure:	4 - 7 Bar	Working Pressure:	10 Bar
Highlight:	ball valve diaphragm , pressure reducing valve

1/2" Pneumatic regulating valve for aseptic regulating with controller/positioner

Specifications

Product Name:	Pneumatic regulating valve for aseptic regulating with controller/positioner
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM/FPM(optional)
Working Pressure:	10Bar
Air pressure:	4 - 7 bar
Max. Working Temperature	-10 degree C to 130 degrees C(EPDM )
Available size:	DN25-DN100 or 1" - 4"
Available connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to an intelligent/C-TOP controller
Operation:	Pneumatic power

Technical Parameter
Size: DN25 - DN100
Signal input: 0 / 4 -20mA, 0 - 5 / 10V
Output feedback: 0 / 4 -20mA, 0 - 5 / 10V (optional)
US protocal: DEVICE NET RS485
Power: DC 24V
Protection grade: IP67
Operation interface: LCD display (Chinese / English menu)

Operation Principles
The position of valve tapered plug is adjusted by position.
So as to control flow rate through the valve(PD).
Besides, the intelligent process controller can control position and flow rate(PID)

Features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: NBR / FPM ( optional )

Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Double function positioning
PD: position controller
PID: process controller
Assembly/disassembly just to loosen the clamp
Standard connection: welding, clamping, threading

Display
