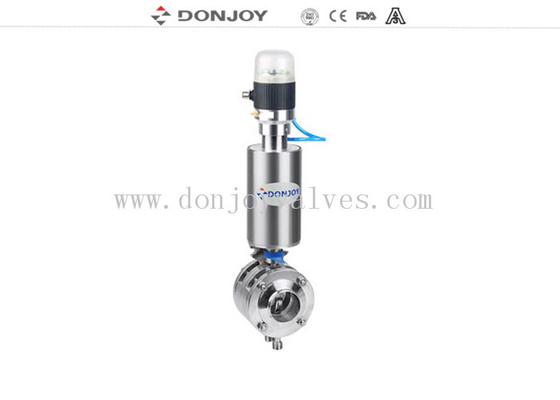

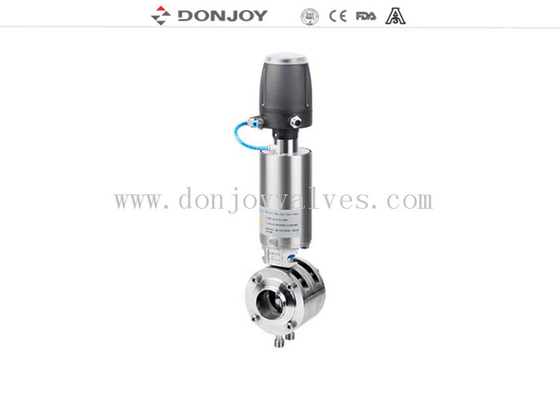

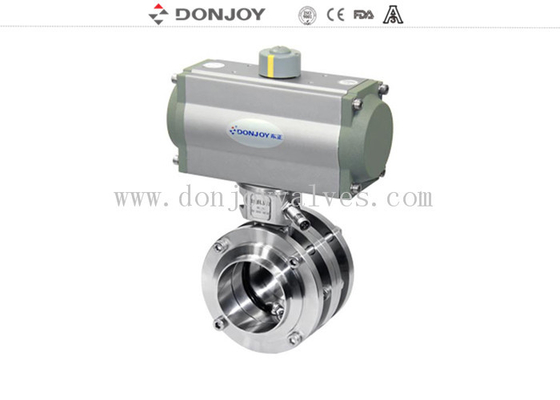

Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves

Large Image : Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Butterfly Valve Of Ball Type	Materials:	301 / 304 / 316L
Size:	DN10 - DN300, 1/2" - 12"	Operation:	Electric
Connection:	Welded	Feature:	With Handle
Structure:	With Electric Actuator
Highlight:	stainless butterfly valves , pneumatic butterfly valve

Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves

Specifications

Product Name:	Stainless steel sanitary level butterfly type ball valve with electic actuator for fluid regulation
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	DN10-DN300, 1/2"-12"
Available connection:	Clamp/welding/thread/special connection
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Manual,Pneumatic, Electric
Handle application:	Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;

Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Display

Electric actuator

Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves 1
