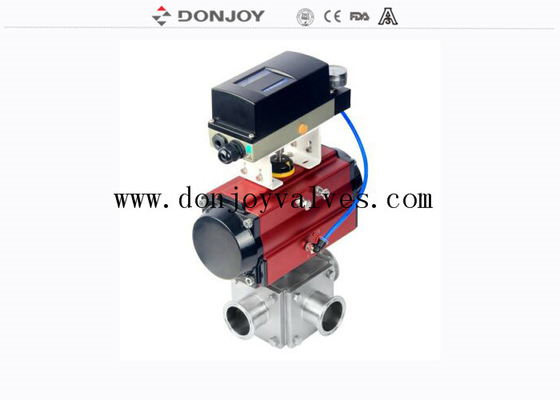

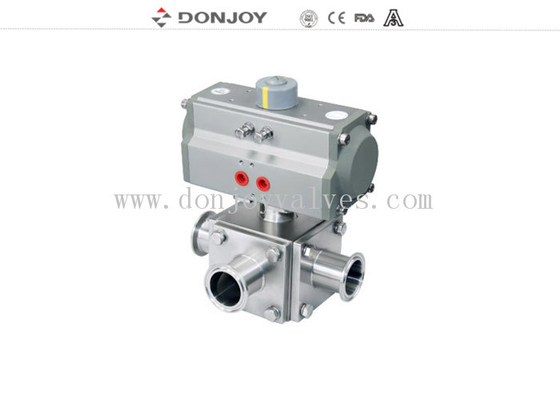

Three Way Pneumatic Actuator DN10 Sanitary Ball Valve

Large Image : Three Way Pneumatic Actuator DN10 Sanitary Ball Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VQW110Q2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Ball Valve	Size Of Panel:	DN10-DN100,1/2"-4"
Operation:	Pneumatic, Control Head,Manual	Media:	304/316L
Connection:	Welded, Clamped, Thread, Flange	Gasket:	PTFE,TFM(FDA 177.1550)
Port Type:	T-port/L-port
Highlight:	DN10 Sanitary Ball Valve , SS304 Three Way Ball Valve , 10Bar Three Way Ball Valve

Sanitary Ball Valve Aluminum pneumatic actuator three-way non-retention with control head

Description:

Size: 1/2"-4", DN10-DN100

Input 0/4-20mA, 0-5/10V

Output: 0/4-20mA, 0-5/10V(position sensor)

Bus:DEVICE NET BUS

Air/spring, Air/Air

Specification

Product Name:	Sanitary Ball Valve Aluminum pneumatic actuator three-way non-retention with control head
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	150 degree C
Availably size:	DN25-DN100 or 1" - 4"
Availably connection:	Weld,Clamp,Thread, Flange
Availably standard:	DIN,SMS,3A
Ball Type:	Directly
Operated:	Manual,Pneumatic,Electric,control Head
Certificate:	FDA,CE,3A,ISO
Packaging details	Standard export package or ar per the request of cutomers

Applications:

This ball valve is widely used in the field of biopharmaceutical, brewing industries, and food beverage, food processing industries. The two kinds of port can be interchangeable on site and guarantee no dead angle, no retention.

Technical Feature

All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, automatic compensating sealing design, the advantages of samll torque.

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, assessed for the Provincial Famous Trademark, Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Three Way Pneumatic Actuator DN10 Sanitary Ball Valve 0

Three Way Pneumatic Actuator DN10 Sanitary Ball Valve 1

Working Diagram

Three Way Pneumatic Actuator DN10 Sanitary Ball Valve 3
