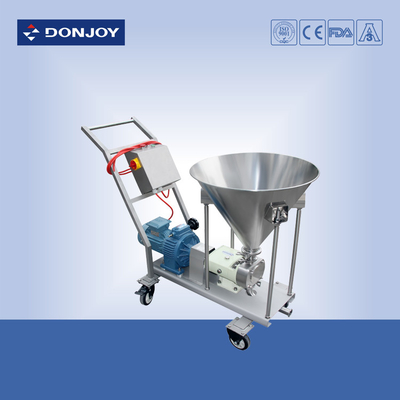

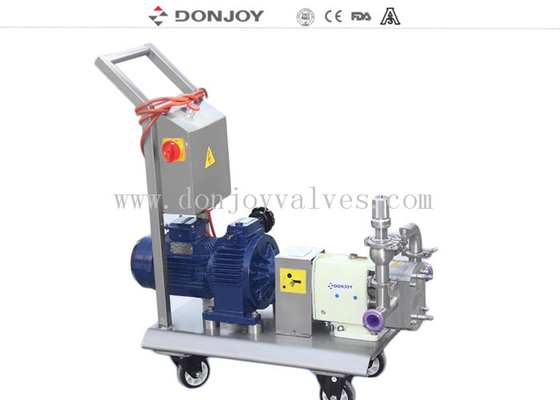

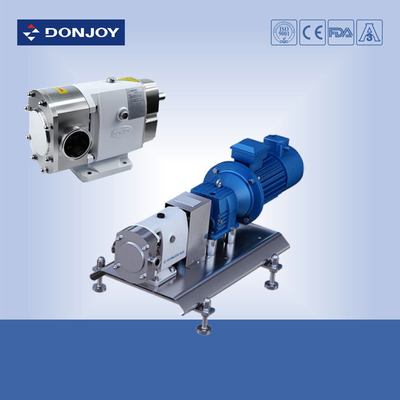

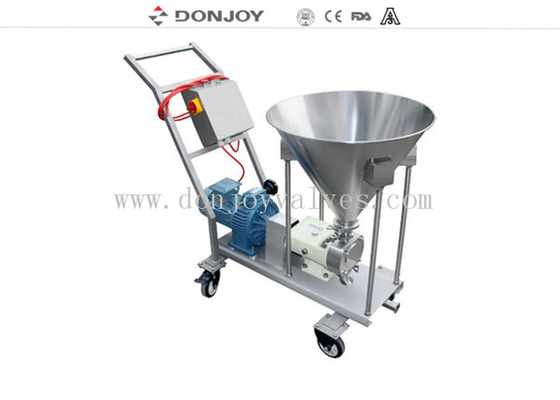

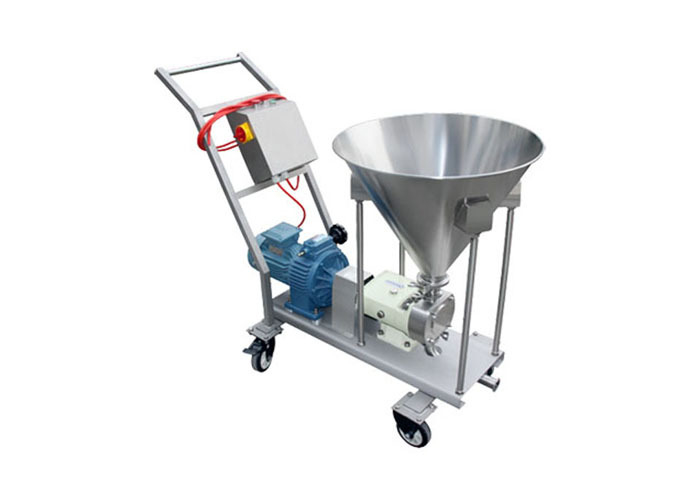

TUR-70 mechanical variable lobe High Purity Pumps with control and hopper

TUR-70 mechanical variable lobe High Purity Pumps with control and hopper

    • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper
    • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper
    • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper
    • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper
    • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper
    • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper
  • TUR-70 mechanical variable lobe High Purity Pumps with control and hopper

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: TUR-70

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product: Hygienic Rotor Pump Grade: Sanitary Level
    Operation: Driven By ABB Motor Etc. Connection: Clamp, Thread, Butt Weld, Flange Etc.
    Power: 380v / 50HZ Flow Rate: 15 - 31m³
    Structure: Movable Device
    High Light:

    self priming pump

    ,

    high pressure pumps

    TUR-70 mechanical variable lobe High Purity Pumps with control and hopper



    Specifications

    Product Name:

    SS316L TUR-70 Mechanical variable Lobe pump

    Material:

    SS304 / SS316L / 1.4301 / 1.4404

    Seal Material:

    SIC / SIC / EPDM (Standard, FDA approval)

    Max. Flow:

    62m3/h  / 395 GPM

    Max.pressure:

    12bar / 174PSI

    Max. working temperature:

    150 C / 302 F

    Max. rev:

    1450 rmp

    Rotor Type:

    2-leaves, 3-leaves, butterfly, signal butterfly

    Mechanical seal:

    SIC / SiC / EPDM (Standard)

    Motor:

    ABB,SEW, 50hz / 60hz

    Surface treatment:

    Inner polished and Sandblast outside

    Connecting type:

    Flanged connection

    Available standard:

    DIN, SMS, 3A, RJT, ISO / IDF

    Operation mode:

    Electic power

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

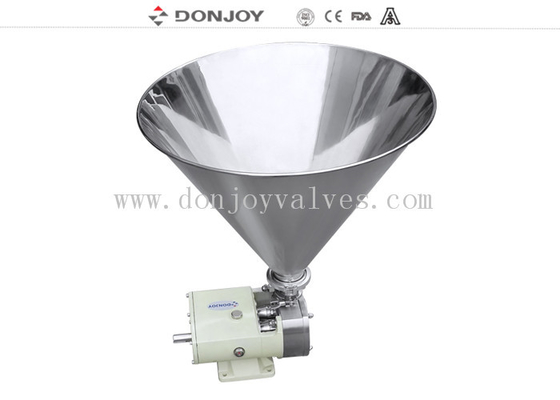

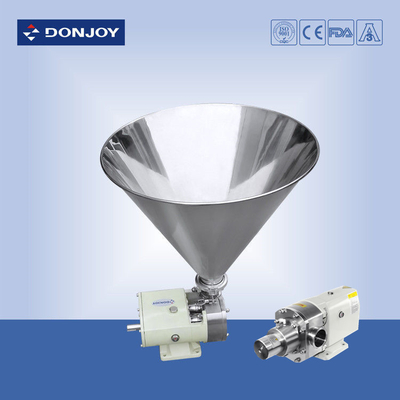

    Input device Funnel type



    Description

    Options

    1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM

    2. Single seal, Double Mechanical Seal

    3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors

    4. Gasket: FPM(Viton),NBR, EPDM

    5. Relief valve at front cover r external by –pass

    6. Built-in safety valve

    7. End-face heat jacket

    8. Complete heat jacket

    9. Vertical TUR Series or Horizontal TUL Series

    10. Different Drives and Fixes

    11. Assembly on a stainless steel baseplate

    12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange

    13. Motor Type B5 motor frequency 50HZ,60HZ

    14. Voltage(v)220-240,360-400,420-460,630-690



    Design and Features

    1.Horizontal TUL,Vetrical TUR

    2.Bare-Shaft Consturction

    3.Hygienic Design of the attachement of the rotors

    4.Sanitary Mechanical Seal, Easy cleaning and maintenace

    5.Applied to CIP Cleaning and sic Sterlization



    Applications

    This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.



    Principles

    1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
    2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
    3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton



    Curve

    TUR-70 mechanical variable lobe High Purity Pumps with control and hopper 0



    TUR-70 mechanical variable lobe High Purity Pumps with control and hopper 1
