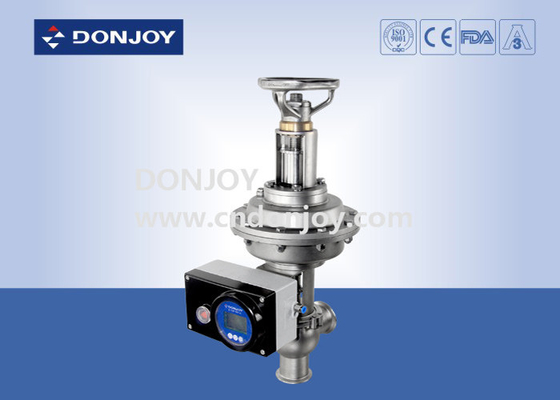

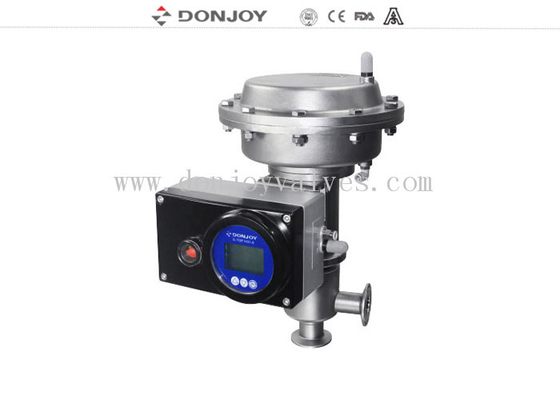

Donjoy Diaphragm Pneumatic Actuator Regulating Valve with Intelligent positioner
Specifications:
|
Product Name: |
SS304 Pneumatic Regulating Valve with positioner |
|
Valve Body Material: |
AISI304, AISI316L |
|
Seal Material: |
EPDM |
|
Working Pressure: |
10Bar |
|
Max. Working Temperature: |
120 degree C |
|
Availably size: |
DN25 - DN100 or 1" - 4" |
|
Availably connection: |
DIN / SMS / RJT / IDF / ISO connection |
|
Air Operation: |
can be configured to intelligent / C-TOP controller |
|
Operate: |
Pneumatic |
|
Certificate: |
FDA, CE |
|
Feature |
Prevcise positioning |
|
Advantage |
Diaphragm - type pneumatic actuator |
Model Choose
| Size | Action | Recommend range | Max pressure |
| Working for straight stroke valve | |||
| 150 | Single acting | DN25-DN50,1"-2" | 20 bar |
| DN65,2.5" | 10 bar | ||
| DN80,3" | 8 bar | ||
| DN100,4" | 5 bar | ||
| 150 | Double acting | DN25-DN50,1"-2" | 20 bar |
| DN65,2.5" | 20 bar | ||
| DN80,3" | 16 bar | ||
| DN100,4" | 10 bar | ||
| 250 | Single-acting | DN65,2.5" | 20 bar |
| DN80,3" | 20 bar | ||
| DN100,4" | 20 bar | ||
| DN125,5" | 8 bar | ||
| DN150,6" | 6 bar | ||
| 250 | Double acting | DN100,4" | 20 bar |
| DN125,5" | 15 bar | ||
| DN150,6" | 10 bar | ||
| DN200,8" | 8 bar |
Description:
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A
Applications:
Regulating valve is a pneumatic proportional valve, which is equipment to control flow.
It's widely used to the dairy, food, beverage, pharmacy and chemical industry.
The most important application is in pressure control, flow control, level, ect.
Operating Principles
The position of valve tapered plug is adjusted by position.
So as to control flow rate through the valve(PD).
Besides, intelligent process controller can control position and flow rate (PID).
Technical advantages:
Compared with other actuators, it could be installed on a lower height, with simple installation,
it could bear higher pressure, which is suitable for cut-off regulating valve.
Its effect of water hammer-resistant is ideal, and it's convenient to install valve positioner.
|
SIZE |
Q |
H |
W |
|
200 |
200 |
220 |
263 |
|
286 |
286 |
256 |
263 |
