Sanitary Grade 12 inch double acting Stainless steel 316 Pneumatic Butterfly Valve For Powder

Sanitary Grade 12 inch double acting Stainless steel 316 Pneumatic Butterfly Valve For Powder

stainless butterfly valves

pneumatic butterfly valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.

Contact Us

Request A Quote
Product Details
Product Name:
Powder Butterfly Valve
Materials:
316L
Size:
2.5'' - 12'', DN65 - DN300
Operation:
Pneumatic
Connection:
Welding
Gasket:
EPDM/Silicon/FKM/NBR
Surface:
Ra≤0.8um
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Delivery Time
5-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
500pcs per month
Product Description

Sanitary Grade 12 inch double acting Stainless steel 316 Pneumatic Butterfly Valve For Powder



Specifications

Product Name:

Powder butterfly valve

Valve Body Material:

SS316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 ℃

Available  size:

2.5''-12'', DN65-DN300

Available connection:

Clamp / welding

Available standard:

3A / DIN / SMS / RJT / ISO / IDF

Operated:

Manual, Pneumatic, Electric

Seal ring:

Imported from Europe

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc



Description

The butterfly valve is mainly designed and used for all kinds of container equipment for powder,

granule, capsule etc.

This butterfly valve have characteristics, which the normal butterfly valve doesn't have, like small

torque,no much friction.when seal open and close,long life,no seal powder fall off,short valve

body,bear pressure can be adjusted

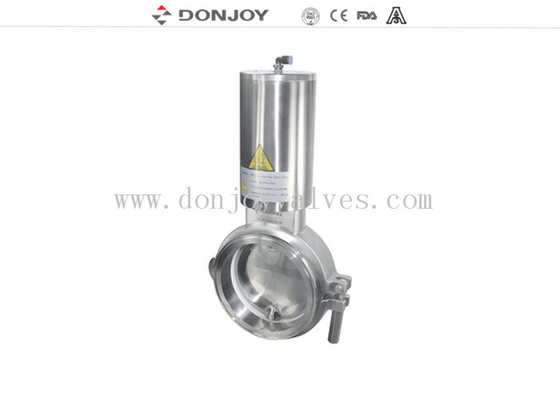

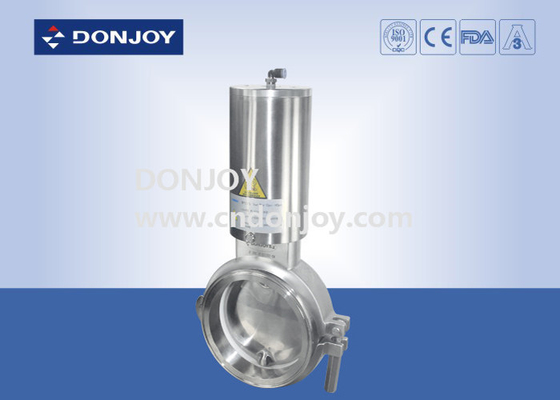

Sanitary Grade 12 inch double acting  Stainless steel 316 Pneumatic Butterfly Valve For Powder 0

Sanitary Grade 12 inch double acting  Stainless steel 316 Pneumatic Butterfly Valve For Powder 1

Sanitary Grade 12 inch double acting  Stainless steel 316 Pneumatic Butterfly Valve For Powder 2

Sanitary Grade 12 inch double acting  Stainless steel 316 Pneumatic Butterfly Valve For Powder 3

Sanitary Grade 12 inch double acting  Stainless steel 316 Pneumatic Butterfly Valve For Powder 4



Working principle

To open valve, the seal will lose efficacy. But there will be no leaking.

The gas in the valve will be sealed once valve is closed, remaining no friction in sealing parts.



Technical advantages

To open and close valve, there won't be friction occurred in the sealing part.

Thus, there's no fear of contamination generated by friction of sealing part.



Material

The material connected with others: AISI 316L / 1.4404

The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600

Internal surface finish: Ra ≤ 0.8μm

External surface finish: CNC fine machining


Options

Gasket: NBR / MVQ / FPM

Pneumatic actuator of double acting

Inductive position sensor

C - TOP control head

Position sensor



Handle selection

Two-position handle;

three-position handle;

four-position pull handle;

multi-position plastic handle;

multi-position stainless steel handle;

Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.


Delivery details

Usually within 20 days after receiving T/T down payment.
