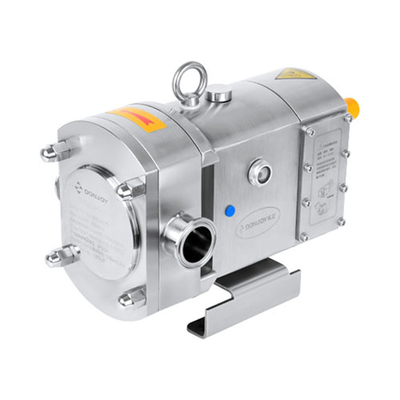

Horizontal Rotary Lobe Pump with 2" Clamped Connection 380V / 50HZ and 3A Certified for Sanitary Applications

Large Image : Horizontal Rotary Lobe Pump with 2" Clamped Connection 380V / 50HZ and 3A Certified for Sanitary Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	STUL-25

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T,LC,Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Materials:	Rotor Pump Of Sanitary Grade	Type:	STUL - 25
Operation:	Mechanical ABB Motor	Mechanical:	Flush Mechanical Seal / Double Seal
Connection:	2" Clamped	Power:	380v / 50HZ
Medium:	Medicine And Fluid Etc.	Structure:	With Cover
Highlight:	lobe rotary pump , high pressure pumps

Horizontal Rotor High Purity Pumps Protector Cover Fit Transfer Medicine And Control Fluid

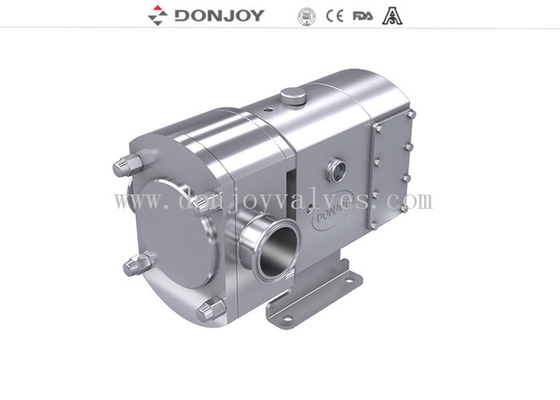

STUL-25 Horizontal Rotor Pump Protector Cover

Designed for transfer medicine and control fluid applications with superior hygienic performance.

Options

Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
Single seal, Double Mechanical Seal
Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
Gasket: FPM(Viton),NBR, EPDM
Relief valve at front cover or external by-pass
Built-in safety valve
End-face heat jacket
Complete heat jacket
Vertical TUR Series or Horizontal TUL Series
Connection: Clamp(DIN32676,3A,ISO), Thread(DIN,SMS,RJT,IDF), Butt weld, Flange

Specifications

Product Name:	SS316L STUL-25 horizontal rotor pump with protector cover for transfer medicine
Material:	SS304/SS316L/1.4301/1.4404
Seal Material:	SIC/SIC/EPDM (Standard, FDA approval)
Max. Flow:	62m³/h / 395 GPM
Max. Pressure:	12bar/ 174PSI
Max. Working Temperature:	150°C / 302°F
Max. Rev:	1450 rpm
Rotor Type:	2-leaves, 3-leaves, butterfly, single butterfly
Mechanical Seal:	SIC/SiC/EPDM (Standard)
Voltage:	110V, 220V, 380V
Motor:	ABB, SEW, 50Hz/60Hz
Surface Treatment:	Inner polished and Sandblast outside
Available Connection:	Clamp, Thread, Butt weld, Flange
Available Standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electric power
Sanitary Certification:	3A, FDA, ISO9001/2008
Design:	Hygienic Design of the attachment of the rotors
Application:	Flow control and regulation

Design and Features

Horizontal TUL, Vertical TUR

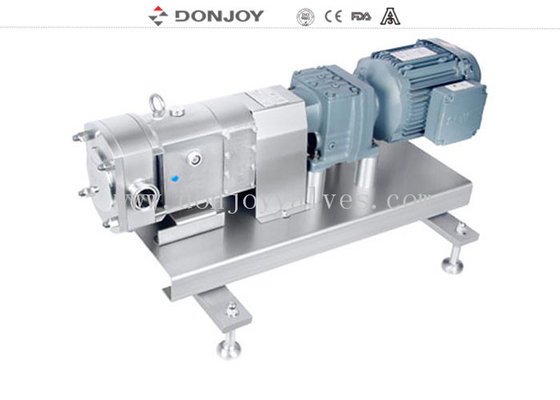

Bare-Shaft Construction
Hygienic Design of the attachment of the rotors
Sanitary Mechanical Seal, Easy cleaning and maintenance
Applied to CIP Cleaning and SIP Sterilization
According to USA 3A Standard

Applications

This pump is ideal for the transfer of viscous as well as low-viscous media in the food processing, cosmetics and pharmaceutical industries.

Operating Principles

As the lobes rotate, the space on the suction side increases as one lobe is distanced from another, creating a partial vacuum which draws the fluid into the pump chamber.
As they are rotated by the shafts, each lobe is consecutively filled and the fluid is displaced to the delivery side.
The small gaps between the lobes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
The pump housing is completely filled and the fluid escapes through the teeth of the lobes, contributing to the pump action.

"DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field."

Model Selection
