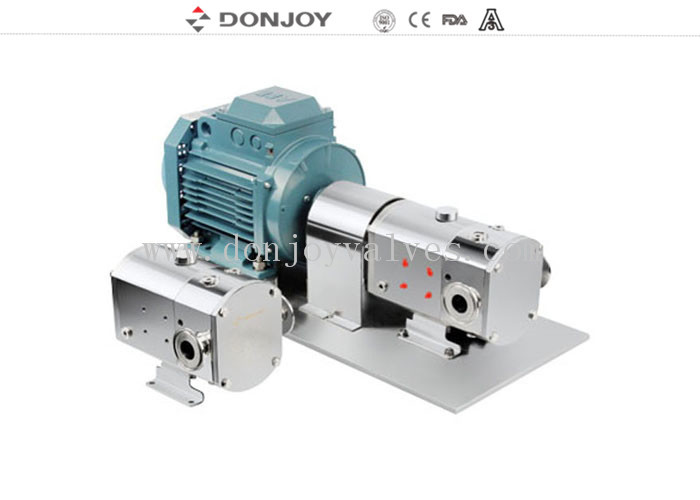

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering

self priming pump

high pressure pumps

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

STUL/STUR

Contact Us

Request A Quote
Product Details
Name:
Mini Rotary Lobe Pump
Size:
MINI STUL-R/L
Operation:
Motor
Mechanical:
SIC / SIC / EPDM
Connection:
Clamped
Media:
Honney And Comestic Etc.
Feature:
Regulating Fluid
Motor:
ABB Or SEW
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
20 sets 30 working days
Product Description

Fluid Control High Purity Pumps ,Mini Rotary Lobe Pump Honney Commestic Food Transfer



Specifications



Product Name:

Horizontal Positive Displacement Rotary Lobe Pump

Seal Material:

EPDM (Standard, FDA approval)

Max. Flow:

3000L/H

Max.pressure:

12bar/ 174PSI

Max. working temperature:

150 C / 302 F

Max. rev:

1450 rmp

Rotor Type:

3 Leave rotors, 6 Leave Rotor

Mechanical seal:

SIC/SiC/EPDM(Standard)

Motor power:

0.75kw, 1.5kw,2.2kw,3.0kw

Sealing option:

Sanitary single mechanical seal/

Double mechanical seal with cooling system

Motor:

ABB,SEW, 50hz / 60hz

Surface treatment:

Inner polished and Sandblast outside

Available connection:

Clamp, Thread Butt weld, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Structure Assembled on a stainless steel baseplate
Optional  Voltage (v) 220-240,360-400,420-460,630-690



Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal

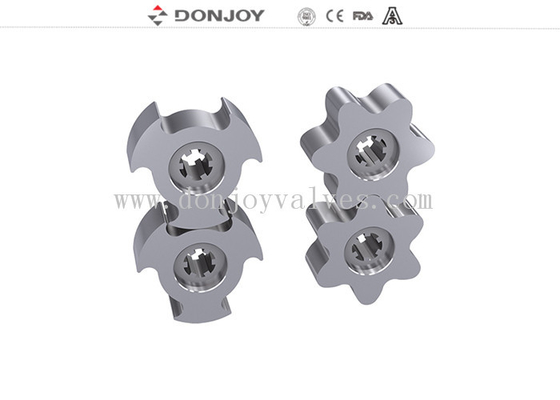

3. Rotors: 2 leave rotor,
3 Leave rotors, 6 Leave Rotor
4. Gasket: FPM(Viton),NBR, EPDM
5. End-face heat jacket



Feature
A .Maual Continuously Variable Transmission
B. Frequency Cnverter adjust motor gear box
C.Fixed speed output transmission
Design and Features

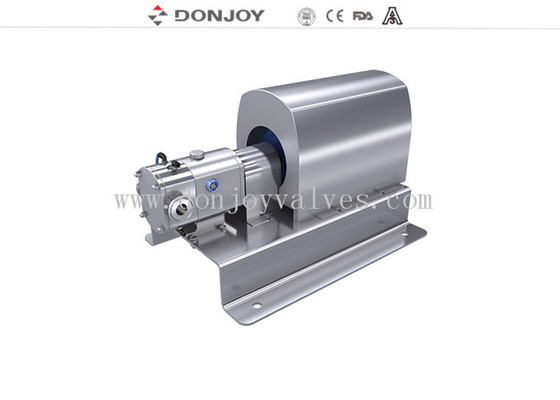

1. Horizontal TUL,Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace


Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.


Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton



Flow Direction of Mini lobe pump

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering 0

Selection Table

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering 1

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering 2



Drawing

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering 3

Fluid Control Mini Rotary Lobe Pump Honney Commestic Food Transfering 4


Maintenance and repair
maintenance of the lobe pump, without the workshop due to compact design, can be made with ease and in a very short time in the field.
Separation of the electrical connection on the pump motor is required before the pump maintenance. After this process is done, pump maintenance and repair can be done.
• Maintenance and changing of Lobes, the coupling between the pump and engine and the pump with line connections can be made with the bolts without removing the front cover removed.
• In this section, The lobes that are easily removed, cleaning and maintenance can be performed.
• The front body to change the seal needs to be removed. Body also reveling operation can be performed in a simple way.
• The threaded portion of the oil reservoir drain oil at periodic intervals is replaced by the plug opening. In this way, the threaded life will be monitored for increase
• The necessary cleaning is done after they are removed all the parts
way back again onto the body and the pump assembled is activated. The direction of rotation of the motor when commissioning the pump according to electrical connections must be mad
