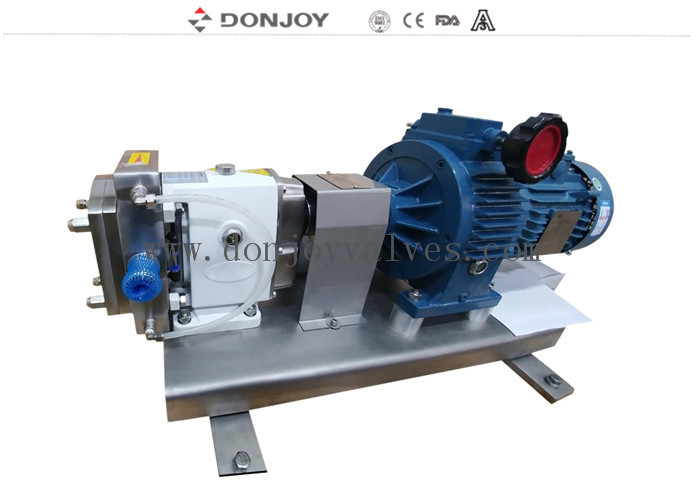

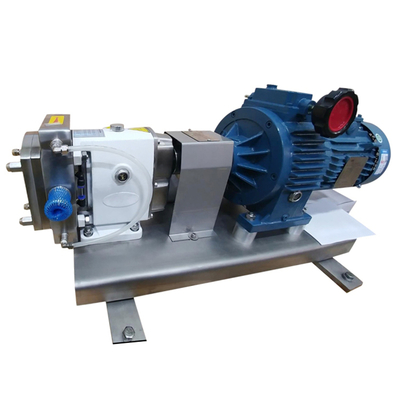

TUL-55 Positive rotary lobe Pump With Motor For Tomato Sauce Transfer

TUL-55 Positive rotary lobe Pump With Motor For Tomato Sauce Transfer

High Purity Positive Sanitary Lobe Pump

Tomato Sauce Transfer Sanitary Lobe Pump

EPDM Clamped Sanitary Lobe Pump

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

TUL/TUR

Contact Us

Request A Quote
Product Details
Materials:
Sanitary Lobe Pump
Size:
TUL / TUR 20 - 125
Operation:
Motor
Mechanical:
SIC / SIC / EPDM
Connection:
Clamped
Pressure:
1- 15 Bar
Medium:
Fulid Etc.
Feature:
Could Be With Frequency Converter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
30 sets 30 working dyas
Product Description

Donjoy TUL-55 Positive rotary lobe Pump With Motor For Tomato Sauce Transfer


Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Gasket: FPM(Viton),NBR, EPDM
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
11. Assembly on a stainless steel baseplate
12. Connection: Clamp(DIN32676,3A,ISO), Threaad(DIN,SMS,RJT,IDF), Butt weld, Flange
13. Motor Type B5 motor frequency 50HZ, 60HZ
14. Voltage(v)220-240, 360-400, 420-460, 630-690


Technical feature
A .Maual Continuously Variable Transmission
B. Frequency Cnverter adjust motor gear box
C.Fixed speed output transmission


Specifications

Product Name:

TUL-55 positive pump with motor for tomato sauce transfer

Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

SIC/SIC/EPDM (Standard, FDA approval)

Max. Flow:

62m3/h / 395 GPM

Max.pressure:

12bar/ 174PSI

Max. rev:

1450 rmp

Rotor Type:

2-leaves, 3-leaves, butterfly, signal butterfly

Installation Could be installed with frequency converter
frequency converter Optional

Mechanical seal:

SIC/SiC/EPDM(Standard)

Voltage:

110V, 220V, 380V

Motor:

ABB,SEW, 50hz/ 60hz

Surface treatment:

Inner polished and Sandblast outside

Availably connection:

Clamp, Thread Butt weld, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Certificate:

3A/54-02 (1580), PED/97/23/EC,
FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc


Design and Features
1. Horizontal TUL, Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
6. according to USA 3A Standard


Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.


Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton.



Pump model and weight



PUMP model Input shaft torque(NM) Maximum axial radial load (N) Inner diameter connection size
[mm]
Recommended maximum theoretical soft particle size
[mm]
Bare pump weight [kg]
STUL-10 15 224 22.4 6 12
TUL-20 60 750 22.4 10 32
TUL-23 60 750 35.1 20 34
TUL-25 60 750 47.8 20 39
TUL-30 123 1237 47.8 25 60
TUL-35 123 1237 59.5 25 63
TUL-55 123 1237 66 25 65
TUL-60 123 1237 72.2 25 68
TUL-70 416 2588 72.2 40 151
TUL-80 416 2588 72.2 40 151
TUL-100 416 2588 97.6 40 160
TUL-125 416 2588 125 40 165



Lobe pump Curve



TUL-55 Positive rotary lobe Pump With Motor For Tomato Sauce Transfer 0

Drawing of Lobe pump

TUL-55 Positive rotary lobe Pump With Motor For Tomato Sauce Transfer 1

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
