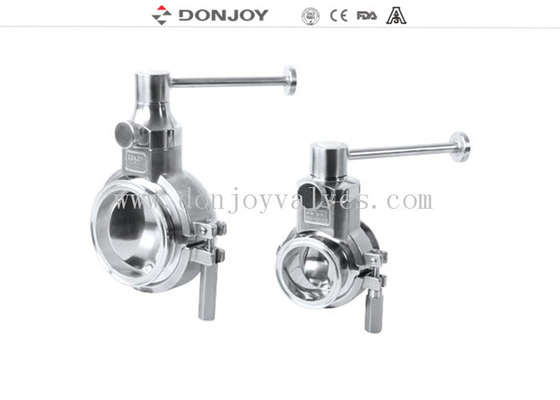

Sanitary grade manual butterfly valve multi position handle for regulating flow

Sanitary grade manual butterfly valve multi position handle for regulating flow

  • Sanitary grade manual butterfly valve multi position handle for regulating flow
  • Sanitary grade manual butterfly valve multi position handle for regulating flow
Sanitary grade manual butterfly valve multi position handle for regulating flow
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Powder Butterfly Valve With Ultra Small Torque Materials: 304 / 316L
Size: 4'' - 12'', DN100 - DN300 Operation: With Multi - Position Handle
Connection: Welding Packaging: According To Order
Handle: Multiple And Could Be Optional
High Light:

stainless butterfly valves

,

pneumatic butterfly valve

Sanitary grade manual butterfly valve multi-position handle for regulating flow



Specifications

Product Name:

Powder butterfly valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

130 ℃

Available  size:

4''-12'', DN100-DN300

Available connection:

Clamp / welding / thread / special connection

Available standard:

3A / DIN / SMS / RJT / ISO / IDF

Operated:

Manual,Pneumatic, Electric

Seal ring:

Imported from Europe

Options of handle:

Two-position handle,

three-position handle,

four-position pull handle,

multi-position plastic handle,

and multi-position stainless steel handle;

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc



Description
The butterfly valve is designed and applied in the valves of separate delivery with the function of opening and closing.It realizes sealing by using the theory of compressed air.This kind of butterfly valve is equipped with ultra-small torque which standard butterfly valve is not.
Specification: DN100 - DN300, 4" - 12"
Operation mode: manual and pneumatic


Working principle:
To open valve, the seal will lose efficacy. But there will be no leaking.The gas in the valve will be sealed once valve is closed, remaining no friction in sealing parts.
Technical advantages:
To open and close valve, there won't be friction occurred in sealing part. Thus, there's no fear of contamination generated by the friction of sealing part.


Material:
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options:
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting and single acting
Inductive position sensor
C - TOP control head
Position sensor
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;


Connection:
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details:
Usually within 20 days after receiving T/T down payment.


Product display
Sanitary grade manual butterfly valve multi position handle for regulating flow 0

Sanitary grade manual butterfly valve multi position handle for regulating flow 1

Sanitary grade manual butterfly valve multi position handle for regulating flow 2
