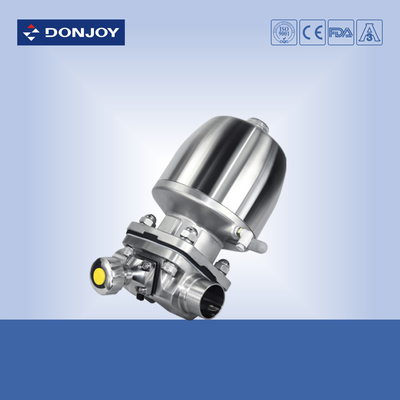

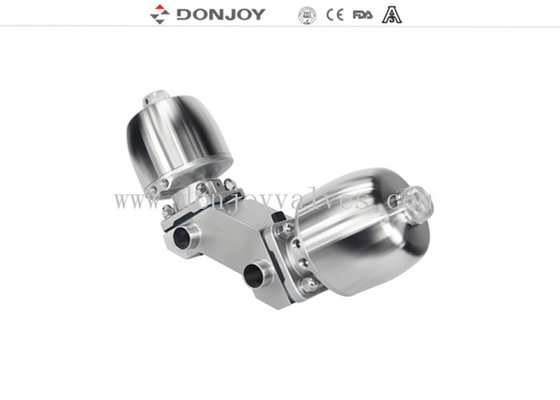

Stainless Steel Actuator Welding Multiport Pneumatic Sanitary Diaphragm Valve

Stainless Steel Actuator Welding Multiport Pneumatic Sanitary Diaphragm Valve

    • Stainless Steel Actuator Welding Multiport  Pneumatic Sanitary Diaphragm Valve
    • Stainless Steel Actuator Welding Multiport  Pneumatic Sanitary Diaphragm Valve
    • Stainless Steel Actuator Welding Multiport  Pneumatic Sanitary Diaphragm Valve
  • Stainless Steel Actuator Welding Multiport  Pneumatic Sanitary Diaphragm Valve

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Multipass Welding Pneumatic Diaphragm Valve Materials: Round Steel Valve Body 1.4404/316L
    Operation: Stainless Steel Actuator Or Ss Handwheel Connection: Welding, Clamp, Other Special Connection
    Gasket: EPDM + PTFE(standard) Structure: M-53A, M-64A
    High Light:

    3 way diaphragm valve

    ,

    diaphragm check valve

    Welding Multiport Pneumatic Sanitary Diaphragm Valve , Stainless Steel Actuator



    Specifications

    Product Name:

    SS 316L Welding Multipass Pneumatic Diaphragm Valve withStainless Steel Actuator

    Valve Body Material:

    round steel valve body 1.4404/316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two piecesPTFE+EPDM

    MaxWorking Pressure:

    6-10Bar(depending on diaphragm)

    Max.Working Temperature:

    -10 to 130 degree C(depending on diaphragm)

    Available  size:

    1/2"-3" DN25-DN50

    Available connection:

    Clamp/weld/thread/special connection

    Available standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Available structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Design:

    Dead angle minimized design

     Packaging Details:

    Bubble pack for each valve.

    Outside packing are carton or plywood cases.

    Or as per the request of customers.

     Delivery details:

    Usually within 20 days after receiving T/T down payment.



    Applications

    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on
    hygiene and aseptic processes in the pharmaceutical industries.

    The valve is excellent for flow control as well as open/close control.

    The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.



    Structure features

    New diaphragm design.

    Maintenance is simple,safe and easy to operate.

    Self-empty function.

    Had excellent KV value.

    CIP/SIP sterilization and cleaning.



    Various configuration of Diaphragm valve

    1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

    2. Diaphragm valve with Control Unit(C-Top)

    3. Valve position Regulator

    4. Plastic Handle

    5. Stainless steel handle

    6. Stianless steel acuator

    7. Plastic Acuator

    8. Body: Casting / Forging/ Round Steel Valve Body


    Drawing

    Please check the size form below for detailed information.

    Stainless Steel Actuator Welding Multiport  Pneumatic Sanitary Diaphragm Valve 0
