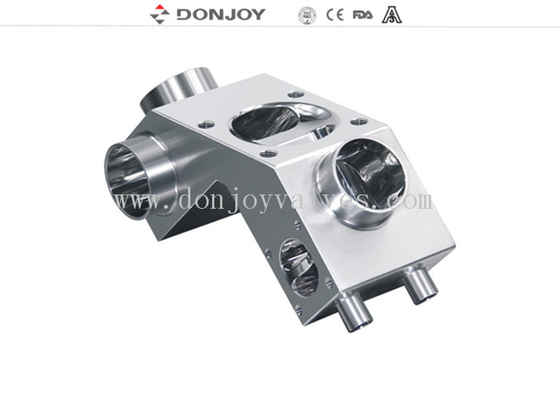

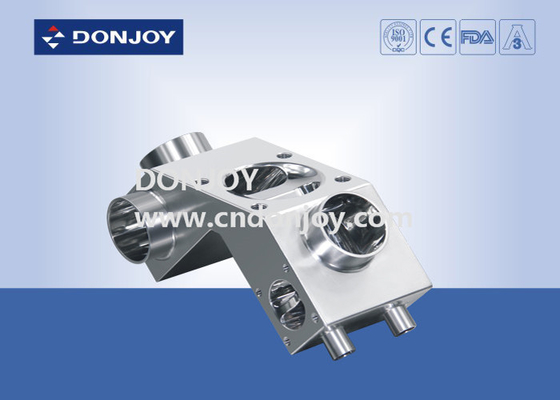

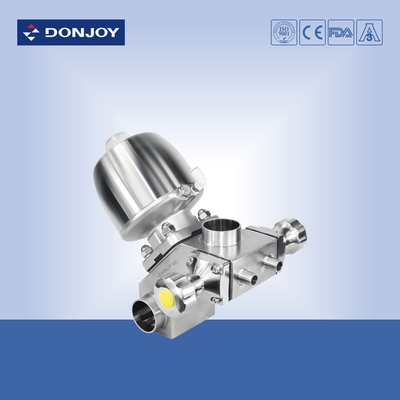

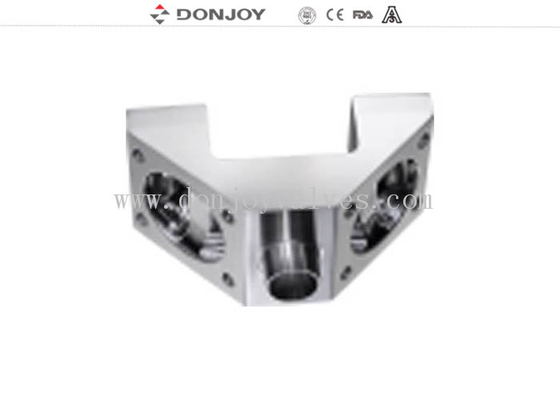

SS316L M-53A multiport Sanitary Diaphragm Valve body for controlling flow

SS316L M-53A multiport Sanitary Diaphragm Valve body for controlling flow

    • small.img.alt
    • small.img.alt
    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: M-53A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Multiport Sanitary Diaphragm Valve Body Materials: SS316L / 1.4404
    Size: 1" - 3" DN25 - DN80 Operation: Stainless Steel Actuator
    Connection: Welding Gasket: EPDM + PTFE
    Feature: Better Sealing Actuator: Double Actuator
    High Light:

    diaphragm check valve

    ,

    3 way diaphragm valve

    SS316L M-53A multiport Sanitary Diaphragm Valve body for controlling flow

    Specifications

    Product Name:

    SS316L M-53A multiport Sanitary Diaphragm Valve body
    for controlling flow

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket / Adhesive PTFE+EPDM / Two
    pieces PTFE+EPDM

    MaxWorking Pressure:

    10 Bar


    Max.Working Temperature:

    130 degree

    Availably  size:

    1"-3" DN25-DN80

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Feature:

    Aseptic valve body

    Direction of input and output:

    On side way



    Description
     Various configuration of Diaphragm valve
    1.Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
    2.Diaphragm valve with Control Unit(C-Top)
    3.Valve position Regulator
    4.Position Sensor Module
    5.Plastic Handle
    6.Stainless steel handle
    7.Stianless steel acutor
    8.Electric Diaphragm valve
    9.Plastic Acutor
    10.Body: Casting / Forging

    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.

    Delivery details
     Usually within 20 days after receiving T/T down payment.


    Drawing
     Please check the size form below for detailed information.
    SS316L M-53A multiport Sanitary Diaphragm Valve body for controlling flow 0







    Design advantage

    SS316L M-53A multiport Sanitary Diaphragm Valve body for controlling flow 1
