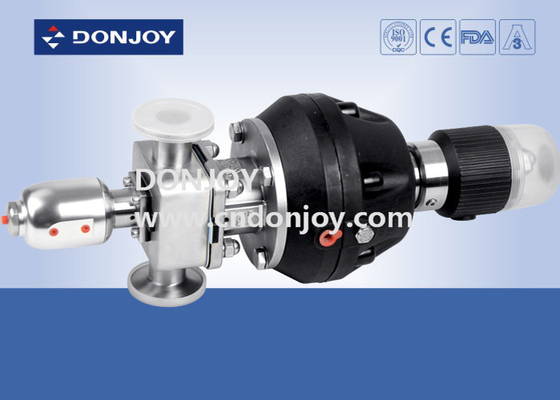

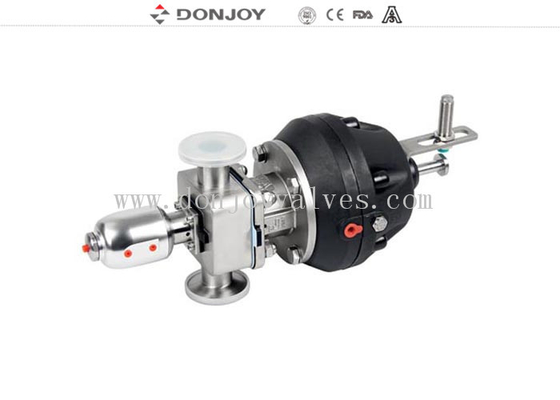

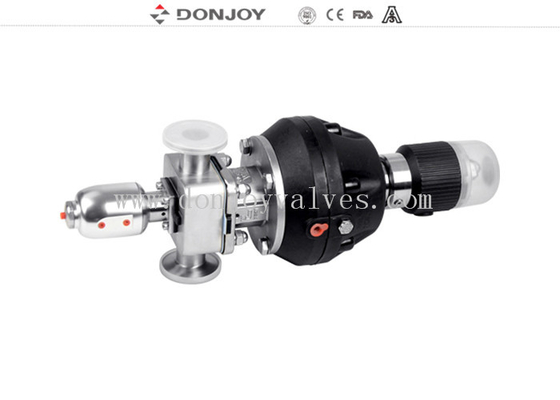

SS316 Stainless steel Pneumatic Multi Diaphragm Valve with control top/Sensor

SS316 Stainless steel Pneumatic Multi Diaphragm Valve with control top/Sensor

diaphragm check valve

3 way diaphragm valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE, 3A, FDA

Model Number:

Donjoy Multi

Contact Us

Request A Quote
Product Details
Product Name:
Pneumatic Sanitary Multiport Diaphragm Valve With Control Unit
Materials:
SS316L/1.4404
Size:
1"-3" DN25-DN80
Operation:
Stainless Steel Actuator
Connection:
Welding/clamp
Gasket:
EPDM+PTFE
Direction Of Actuator:
Opposite Direction
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

SS316 Stainless steel Pneumatic Multi Diaphragm Valve with control top/Sensor

 Specifications

Product Name:

stainless steel pneumatic sanitary multiport Diaphragm Valve with control unit

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

10 Bar

Max.Working Temperature:

130 degree C

Availably  size:

1"-3" DN25-DN80

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Manual,Pneumatic

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Instruction manual:

Chinese - English bilingual

Direction of port:

As per actual situation


Description
Various configuration of Diaphragm valve
1.Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.Diaphragm valve with Control Unit(C-Top)
3.Valve position Regulator
4.Position Sensor Module
5.Plastic Handle
6.Stainless steel handle
7.Stianless steel acutor
8.Electric Diaphragm valve
9.Plastic Acutor
10.Body: Casting / Forging


Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.


Delivery details

Usually within 20 days after receiving T/T down payment.


Drawing
Please check the size form below for detailed information.


 SS316 Stainless steel Pneumatic Multi Diaphragm Valve with control top/Sensor 0
 SS316 Stainless steel Pneumatic Multi Diaphragm Valve with control top/Sensor 1
