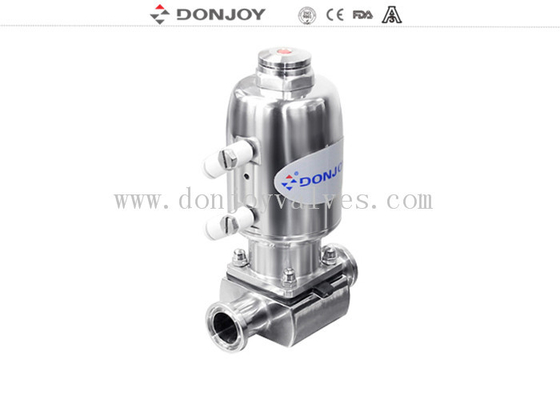

Filling Sanitary Diaphragm Valve with Stainless steel actuator

Filling Sanitary Diaphragm Valve with Stainless steel actuator

diaphragm check valve

3 way diaphragm valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

DONJOY-TANK

Contact Us

Request A Quote
Product Details
Product Name:
Filling Diaphragm Valve
Materials:
SS316L / 1.4404
Size:
1'' - 4'', DN25 - DN100
Operation:
Stainless Steel Or Plastic Actuator Is Optional
Connection:
Clamp
Gasket:
EPDM + PTFE
Valve Position Regulator:
Optional Combination
Spare Parts:
Position Sensor Components
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Filling Sanitary Diaphragm Valve with Stainless steel actuator


Specifications


Product Name:

Mini multi-function canned Diaphragm Valve with Stainless steel actuator

 Valve Body Material:

 SS316L

Seal Material:

Single silicone gasket/ Adhesive PTFE+EPDM/Two pieces
PTFE+EPDM

MaxWorking Pressure:

8 Bar

Max.WorkingTemperature:

150 degree C

Availably  size:

1''-4'', DN20-DN100

Availably connection:

Clamp/weld/thread/special connection

 Availably standard:

3A/BPE/DIN/ISO/IDF

 Operated:

 Manual,Pneumatic

 Availably structure:

Straight, tee, U-type, tank bottom

 Control:

Smart valve positioner / C-TOP control / position sensor

 Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

 Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

 Structure of valve body:

 Vertical or horizontal

Configuration:

Flexible with various valve seat


Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2.      Diaphragm valve with Control Unit (C-Top)
3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor
10.    Body: Casting / Forging

Operation mode
Manual and Pneumatic operation

Available connection
Clamp / weld / thread / special connection

Control
Smart valve positioner / C-TOP control / position sensor

Material of seal ring
Single silicone gasket / Adhesive PTFE + EPDM / Two pieces PTFE + EPDM

Packaging
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.



Delivery
 Usually within 20 days after receiving T/T down payment.

Product display

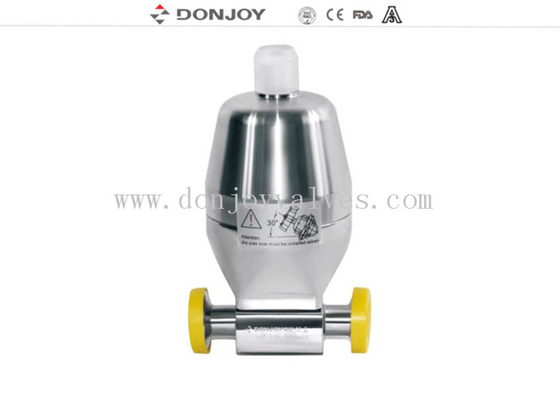

Filling Sanitary Diaphragm Valve with Stainless steel actuator 0
