Stainless Steel Valve / Sanitary Diaphragm Valve Assembly With EPDM PTFE Gasket

Radial Sanitary Diaphragm valve Assembly with EPDM or PTFE gasket


Applications
 1. Mainly used in pharmaceutical, biotech, health care, cosmetic and food industries.
 2. In the pharmaceutical industry, the valve can be used as process control valve, dosing valve,  sampling valve and aseptic drain valve etc.
 3. In the food industry, this valve is often used as guide device, such as sampling valve, dosing  valve(For example adding CO2/Nitrogen to beer, add seasoning to drink)

Specifications


Product description
Radial diaphragm valve are mainly manual and pneumatic operations, inside body finished Ra<0.5um, in order to meet the requirements fo biopharmaceutical industry.

Structure features
New diaphragm design.
Maintenance is simple, safe and easy to operate.
Self-emptying function.
Dead angle minimization.
Had excellent KV value.
CIP/SIP sterilization and cleaning.


Various configuration of Diaphragm valve
1. Plastic actuator
2. Stainless steel handle


Certifications
 3A CERTIFICATION
 CE CERTIFICATION
 FDA 177.2600 CERTIFICATION for gasket


Application scope
 In the industries of Dairy,food, beverage, pharmacy, cosmetic etc.

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.

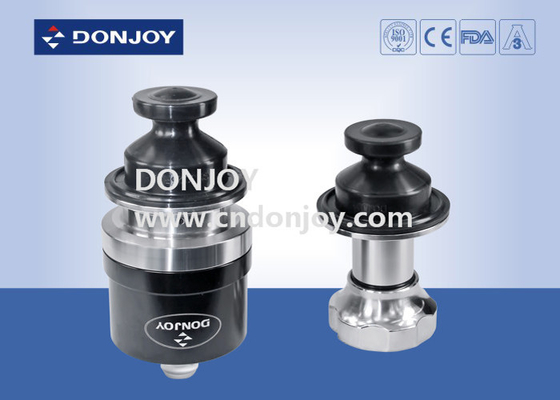

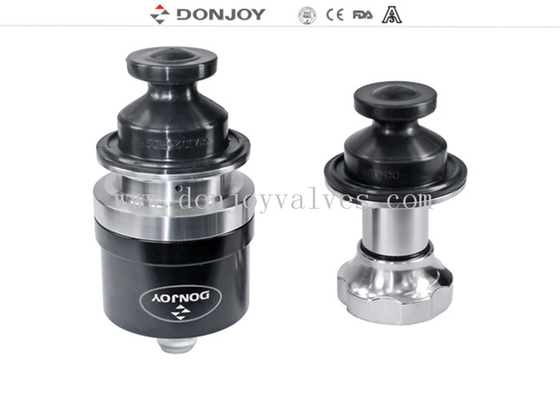

 Photos of Radial Sanitary diaphragm valve assembly

Product display


Tag : Donjoy Diaphragm valve,  Radial Bottom valve,  zero  dead leg valve
