DN6 or 1/4" inch Sanitary Phamacial Valve with EPDM+PTFE Diaphragm for higher tempreture

DN6 or 1/4" inch Sanitary Phamacial Valve with EPDM+PTFE Diaphragm for higher tempreture

sanitary sample valve

3 way diaphragm valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

T-H

Contact Us

Request A Quote
Product Details
Product Name:
Diaphragm Valve With Pneumatic Actuator
Materials:
SS316L / 1.4404
Size:
1/4'' - 3/4'', DN6 - DN15
Connection:
Clamp/welded/thread
Gasket:
EPDM + PTFE/ EPDM
Type:
T Type Tee
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Mini T Type Sanitary Phamacial Valve with EPDM+PTFE Diaphragm for higher tempreture

 Specifications


Product Name:

Mini T type Tee Sanitary Diaphragm Valve with pneumatic actuator

 Valve Body Material:

 SS316L

Seal Material:

Single sillcone /EPDM gasket
Adhesive PTFE+EPDM
Two pieces PTFE+EPDM

 MaxWorking Pressure:

 3Bar or 6 Bar

 Max.WorkingTemperature:

150 degree °C

Availably  size:

1/4''-3/4'', DN6-DN15

 Availably connection:

Clamp/weld/thread/special connection

 Availably standard:

3A/BPE/DIN/ISO/IDF

 Availably structure:

Straight, tee, U-type, tank bottom

 Control:

Smart valve positioner / C-TOP control / position sensor

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc


Description
Various configuration of Diaphragm valve
1.      Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2.      Diaphragm valve with Control Unit (C-Top)

3.      Valve position Regulator
4.      Position Sensor Module
5.      Plastic Handle
6.      Stainless steel handle
7.      Stianless steel acutor
8.      Electric Diaphragm valve
9.      Plastic Acutor
10.    Body: Casting / Forging

Operation mode
Mini Pneumatic operation

Available connection
Clamp / weld / thread / special connection



Control
Smart valve positioner / C-TOP control / position sensor

Material of seal ring
Single sillcone gasket / Adhesive PTFE + EPDM / Two pieces PTFE + EPDM

Packaging
 Bubble pack for each valve.
 Outside packing are carton or plywood cases.
 Or as per the request of customers.

Delivery
Usually within 20 days after receiving T/T down payment.

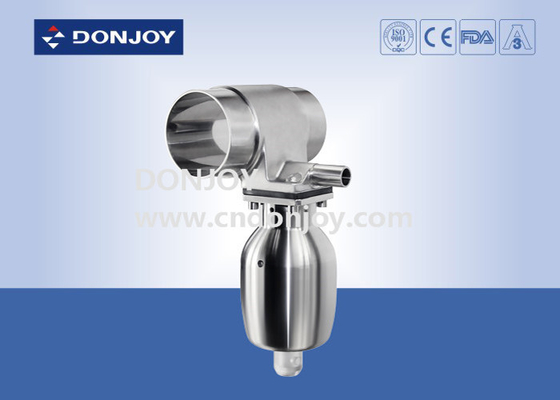

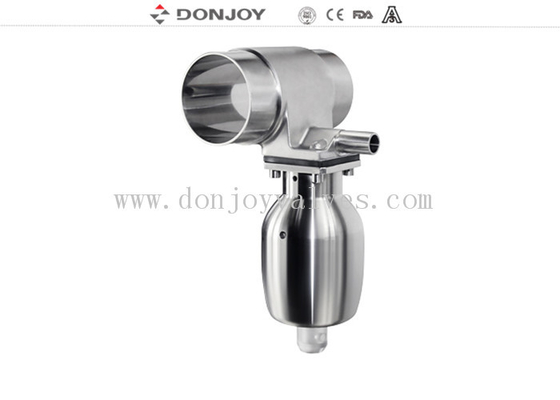

Photos of Mini T type Tee Sanitary Diaphragm Valve with pneumatic actuator
DN6 or 1/4" inch Sanitary Phamacial Valve with EPDM+PTFE Diaphragm for higher tempreture 0
