SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End

Large Image : SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	Sanitary Diaphragm Valve Casting Body	Materials:	SS316L / 1.4404
Size:	1'' - 4'', DN20- DN100	Operation:	Pneumatic / Manual
Connection:	Welded/clamp/thread	Gasket:	EPDM + PTFE/ EPDM
Body:	Casting Body	Structure:	One Way
Highlight:	3 way diaphragm valve , diaphragm check valve

SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End

Specifications

Product Name:	316LSanitary Diaphragm valve casting body for fluid process control
Valve Body Material:	SS316L
Max Working Pressure:	10 Bar
Max.WorkingTemperature:	150 degree C
Available size:	1"-4", DN20-DN100
Available connection:	Clamp/weld/thread/special connection
Available standard:	3A/BPE/DIN/ISO/IDF
Operation mode:	Pneumatic /manual
Structure:	Casting body with one way
Control:	Smart valve positioner / C-TOP control / position sensor
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc

Description

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)

2. Diaphragm valve with Control Unit (C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

8. Electric Diaphragm valve

9. Plastic Acutor

10. Body: Casting / Forging

Diphragm Gasket

1. EPDM+PTFE

2. EPDM+PTFE Seperate

3.Single seal : EPDM, SILICONE, FPM

4.Mini Type Diaphragm valve

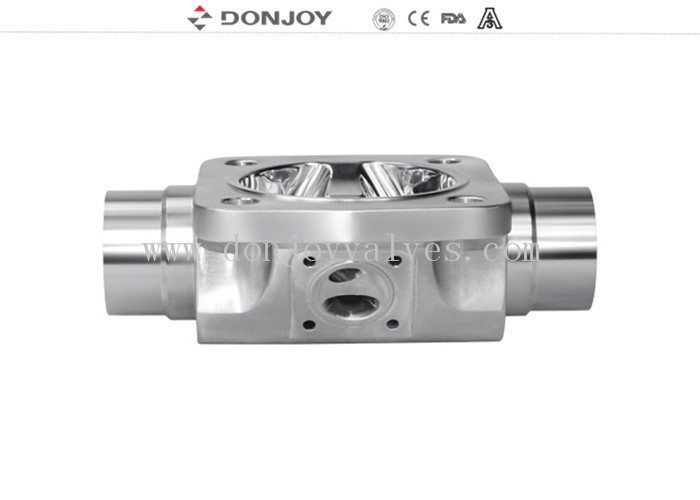

SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End 0

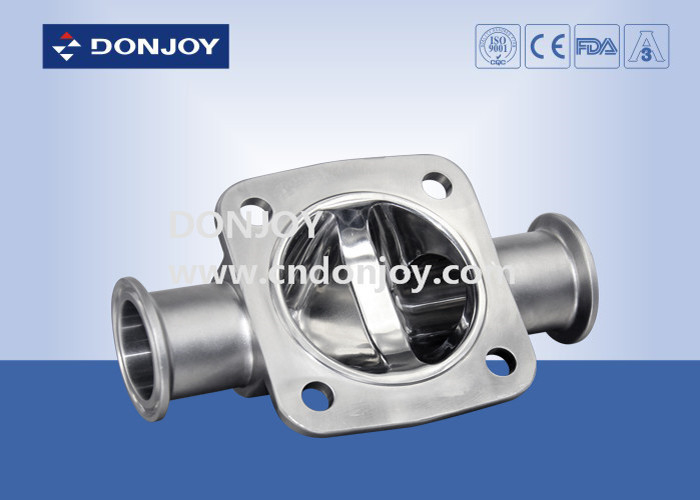

SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End 1

Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.

Delivery details

Usually within 20 days after receiving T/T down payment.

Valve body

Please check the detailed information below for the valve body of diaphragm valve.

Product drawing

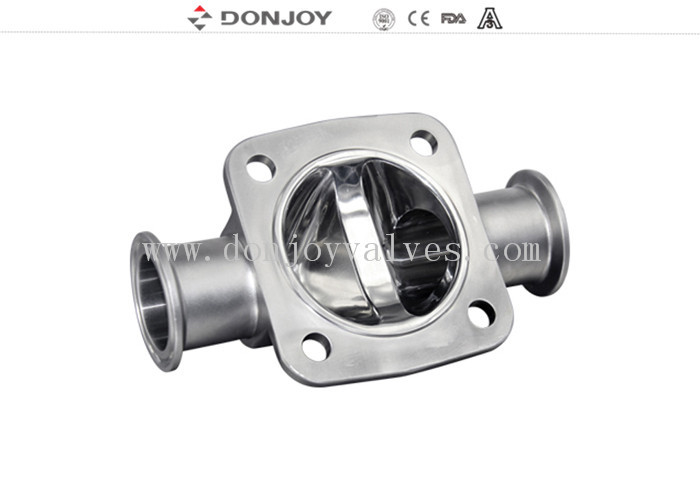

SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End 2

Product display

SS316L directly Sanitary Diaphragm Valve Casting Body with tri clamp End 3

Tag: Directly 2 way diaphragm valve, Sanitary valves, Donjoy valves.
