Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type

Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type

    • Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type
    • Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type
    • Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type
  • Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO. MINI-VGM0S2, NO.T-K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Mini-type Tee Diaphragm Valve Size: 1/4"-3/4",DN6-DN15
    Gasket: SILICONE Structure: T Port/ TEE
    Max Temp: -30 To 150 Degree C(depending On Diaphragm) Max Pressure: 10bar/146psi
    High Light:

    sanitary sample valve

    ,

    3 way diaphragm valve

    Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type


    Specifications

    Product Name:

    SS316L T type Three - way plastic manual Sanitary Diaphragm Valve

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone /EPDM gasket ,Adhesive PTFE+EPDM
    Two pieces PTFE+EPDM

    Max Working Pressure:

    10 Bar

    Max.Working Temperature:

    150 degree C

    Material requirement:

    Sanitary level

    Available  size:

    1"-4", DN25-DN100

    Available connection:

    Clamp/weld/thread/special connection

    Available standard:

    3A/BPE/DIN/ISO/IDF

    Available structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc


    Applications
    Manually operated diaphragm valve is specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
    The valve is excellent for flow control as well as for open/close duties.
    The diaphragm valve is better in feature of flow in comparison with other valves. It si eaiser to clean up and better to process the sunstance with particles. The phenomenon of air pocket is rare during application of flow control.


    Valve Body
    Forging body

    Forging body blank is through a piece of stainless steel ingot, in the forging process, along with the high temperature forging provide, through extrusion blank shape change, through the forging after body dendity higher, the structure is more uniform, no sand hole and other impurities. Then through the processing center carry on the high precision machining.
    Casting body
    Casting body is made by the mould paraffin wax model, paraffin wax model infiltratiion in ceramic, to let the whole body wax mold surface form a layer of strong ceramic. Melt wax modl, then into the melting of the stainless steel solution, after cooling knock off the appearance of ceramic, blank body is made up. Casting size is very accurate, the outward apperance is smmoth, clean and tidy.


    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.

    Delivery details
    Usually within 20 days after receiving T/T down payment.

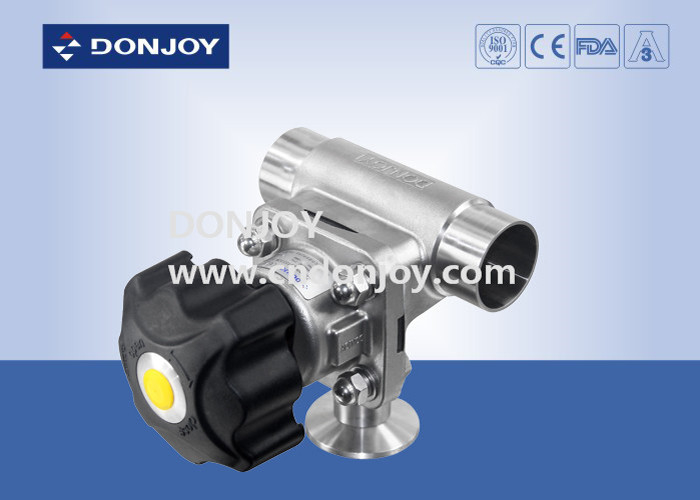

    Photos of SS316L T type Three - way plastic manual Sanitary

    Diaphragm Valve


    Three - Way SS Sanitary Diaphragm Valve Pneumatic Operation SS316L T Type 0
