Place of Origin:
China
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.MINI - VGM0Q4
Contact Us

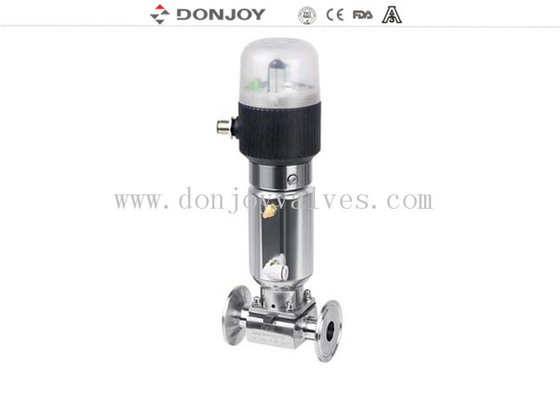

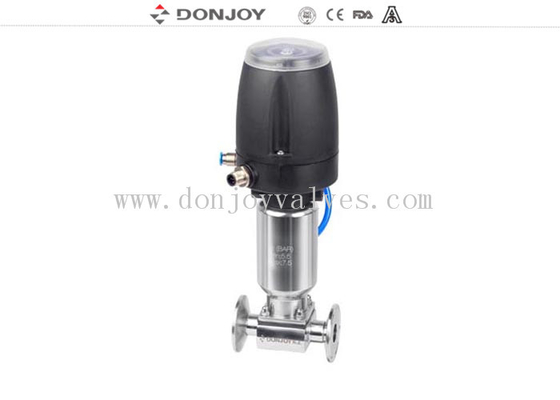

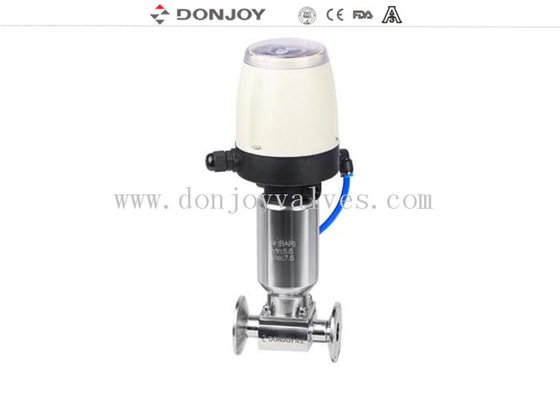

Aseptic 1/2 inch EPDM+PTFE diaphragm Clamp ends pneumatic diaphragm valve with a fluid control smart head
Specifications
Product Name: | Hygenic aseptic 1/2 inch Clamp ends EPDM+PTFE diaphragm pneumatic diaphragm valve with a smart head fluid control |
Valve Body Material: | SS316L |

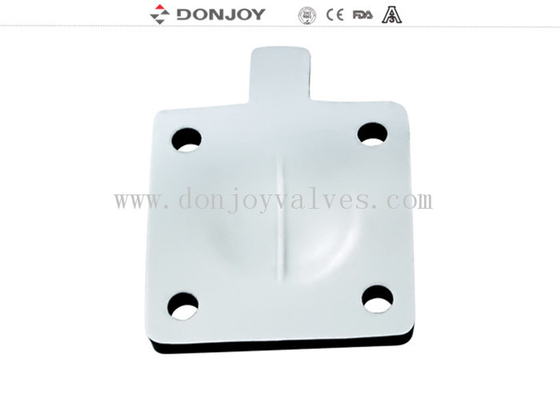

| Single silicone gasket/ Adhesive PTFE+EPDM/single membrane EPDM |
MaxWorking Pressure: | 8Bar |
Max.working temperature: | 150 degree C for adhensive EPDM+PTFE diaphragm,120 degree for single diaphragm EPDM |
Available size: | 1/4”-3/4”, DN6-DN15 |
Available connection: | Clamp/weld/thread/special connection |
Available standard: | 3A/BPE/DIN/ISO/IDF |
Operated: | Pneumatic |
Available structure: | Straight, tee, U-type, tank bottom |
Control: | Smart valve positioner / C-TOP control / position sensor |
Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
Optional: | Manual |
Actuator type: | Pneumatic with air input / output |
Description
Max pressure: Normal close 8 bar,PTFE 6 bar (Option)
Normal close 6 bar,PTFE 4.5 bar(Standard)
Normal open an ddouble acting EPDM 8 bar,PTFE 6 bar
Forging body:1.4404/316L ASME BPE /1.4435 Nb2 Fe ＜0.5%
Casting body:1.4404/316L
Various configuration of Diaphragm valve
1. Diaphragm valve with Positioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stainless steel actuator
8. Electric Diaphragm valve
9. Plastic Actuator
10. Body: Casting / Forging
Packaging Details
Bubble pack for each valve. Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T / T down payment.
Mini - type diaphragm valve
