Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Contact Us

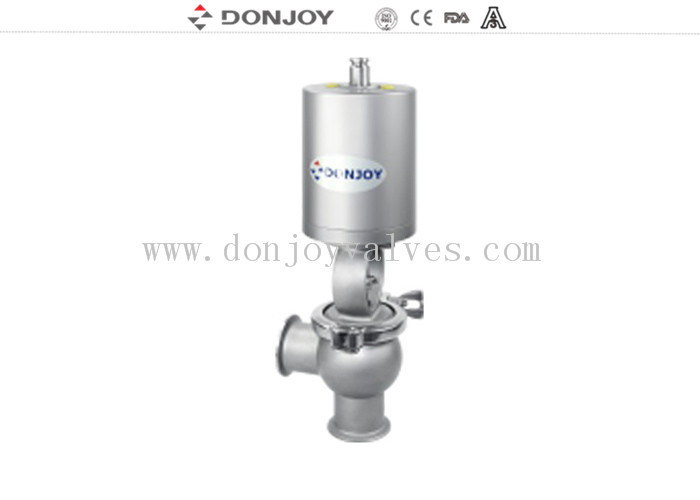

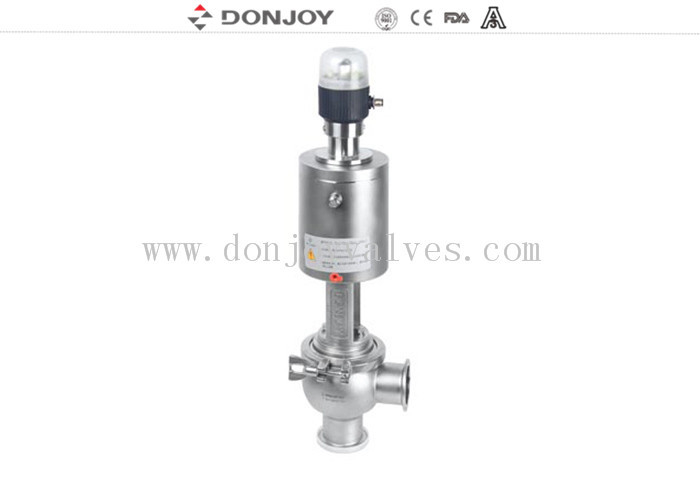

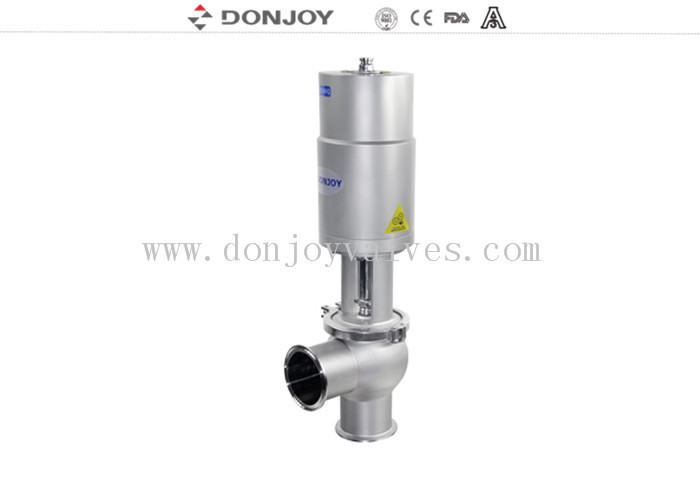

Aseptic Reversing Seat Valve DN25-DN150 with pneumatic actuator 304 / 316L
Quick detail
Aseptic Reversing Seat Valve
Aseptic Regulating Seat Valve
Aseptic Divert Seat Valve
Specification
|
Product Name: |
sanitary aseptic reversing valve with pneumatic actuator for conveying fluid |
|
Valve Body Material: |
Stainless steel |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10 bar |
|
Max.Working Temperature: |
130°C |
|
Available size: |
DN25 - DN150 or 1" - 6" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Pneumatic operation |
|
Structure |
Aseptic type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic etc |
|
Body seat |
single seat |
|
Body type |
20type,30type,11type,12type,21type,22type,31type,32type |
|
Feature of seal: |
Elastic compression, friction - free |
Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Product drawings
Tag: Seat valves, Single seat valve, Donjoy valve. overchange valve
