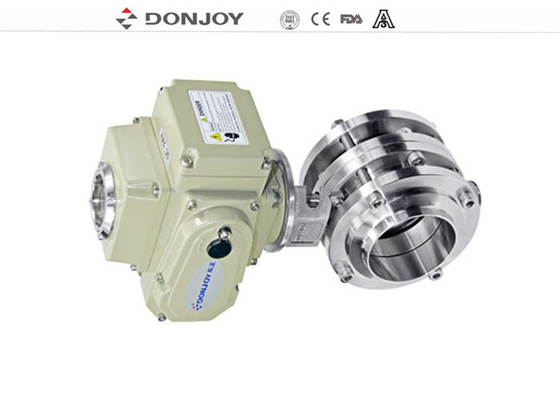

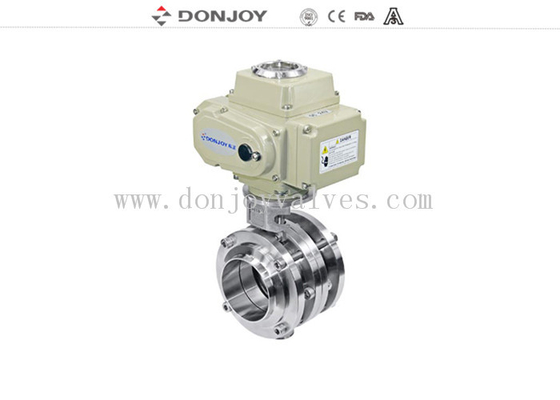

Hygenic SS304 316L Active Output AC220V Butterfly Valves

Hygenic SS304 316L Active Output AC220V Butterfly Valves

AC220V Butterfly Valves

SS304 Butterfly Valves

SS304 clamp butterfly valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Product Name:
3PC Butterfly Valve
Materials:
304 / 316L
Size:
DN10 - DN300, 1/2" - 12"
Operation:
Electric
Connection:
Welded
Feature:
With Electric Actuator
Structure:
Electronic Butterfly Valve
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box or wooden box
Payment Terms
T/T, LC, Credit Card
Product Description

DONJOY Hygenic Stainless Steel 304 316L AC220V Active Output On/off electronic 3PC butterfly valve

Specifications

Product Name:

DONJOY Hygenic Stainless Steel 304 316L AC220V Active Output On/off electronic 3PC butterfly valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available  size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp/welding/thread/flange

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Electric

Control:

Electric actuator

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

bubble pack for each valve. Outside packing is carton or
plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


Hygenic SS304 316L Active Output AC220V Butterfly Valves 0Drawing
Hygenic SS304 316L Active Output AC220V Butterfly Valves 1
Hygenic SS304 316L Active Output AC220V Butterfly Valves 2
Hygenic SS304 316L Active Output AC220V Butterfly Valves 3


Active output on/off

electric actuator



Hygenic SS304 316L Active Output AC220V Butterfly Valves 4


Size Torque               Recommend valve size
Butterfly valve  Ball valve
DJ-5        30S-50N.M ≤4"-DN100 ≤2.5"
20S-30N.M ≤3"-DN80 ≤2"-DN50
10S-15N.M ≤2.5"-DN65 ≤1.5"-DN40
DJ-10 30S-100N.M

5"DN125

12"-DN300

DN65-3"
20S-60N.M

4"-DN100

6"-DN150

2.5"-DN65
15S-50N.M

3"-DN80

5"-DN125

2"-2.5"
DJ-20 30S-200N.M - DN80-4"
15S-100N.M

5"-DN125

12"-DN300

DN65-3"
DJ-40 30S-400N.M - -
15S-200N.M - DN80-4"

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Operating Torque

Operating Torque (n.m) DN25 -1" DN40 -1..5" DN50 -2" 2.5"   DN65  3"   DN80  DN100 -4" DN125 DN150
3 4 5 10 12 14 18 25 40 55


Options
Gasket: NBR / MVQ / FPM
Manual handle or pneumatic actuator
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.Hygenic SS304 316L Active Output AC220V Butterfly Valves 5

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.


Display

Hygenic SS304 316L Active Output AC220V Butterfly Valves 6
