Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve

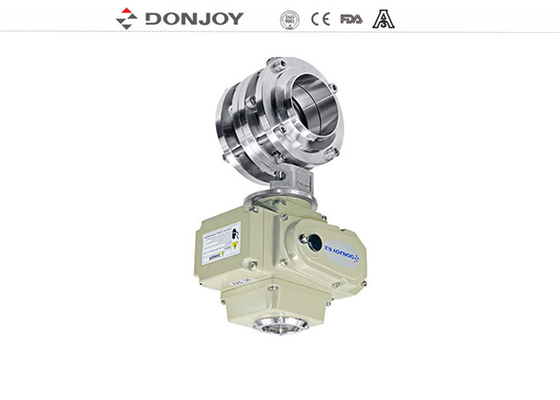

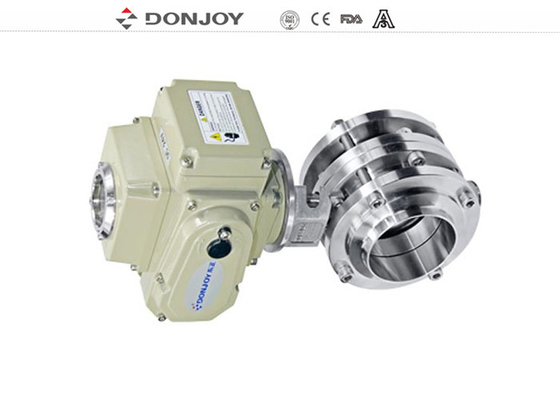

Large Image : Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve

Product Details:

Place of Origin:	China
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box or wooden box
Payment Terms:	T/T, LC, Credit Card

Contact Now

Detailed Product Description

Product Name:	3PC Butterfly Valve	Materials:	304 / 316L
Size:	DN10 - DN300, 1/2" - 12"	Operation:	Electric
Connection:	Welded	Feature:	With Electric Actuator
Structure:	Butterfly
Highlight:	3PC Weld Butterfly Valve , 4 Inch Weld Butterfly Valve , 3PC lug type butterfly valve

Sanitary Stainless Steel 4inch 316 AC220V Passive Output Switch type electronic 3PC Weld Butterfly Valve

Specifications

Product Name:	Sanitary Stainless Steel 4inch 316 AC220V Passive Output Switch type electronic 3PC Weld Butterfly Valve
Valve Body Material:	SS304/316L
Seal Material:	EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max Working Pressure:	10Bar
Max.Working Temperature:	120 degree C
Available size:	DN10-DN300, 1/2"-12"
Available connection:	Clamp/welding/thread/flange
Available standard:	3A/DIN/SMS/RJT/ISO/IDF
Operated:	Electric
Control:	Passive output Electric actuator
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Packaging Details:	bubble pack for each valve. Outside packing is carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Drawing

Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve 2

Size	Torque	Recommend valve size
Size	Torque	Butterfly valve	Ball valve
DJ-5	30S-50N.M	≤4"-DN100	≤2.5"
	20S-30N.M	≤3"-DN80	≤2"-DN50
	10S-15N.M	≤2.5"-DN65	≤1.5"-DN40
DJ-10	30S-100N.M	5"DN125 12"-DN300	DN65-3"
	20S-60N.M	4"-DN100 6"-DN150	2.5"-DN65
	15S-50N.M	3"-DN80 5"-DN125	2"-2.5"
DJ-20	30S-200N.M	-	DN80-4"
DJ-20	15S-100N.M	5"-DN125 12"-DN300	DN65-3"
DJ-40	30S-400N.M	-	-
DJ-40	15S-200N.M	-	DN80-4"

Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Operating Torque

Operating Torque (n.m)	DN25 -1"	DN40 -1..5"	DN50 -2"	2.5"	DN65	3"	DN80	DN100 -4"	DN125	DN150
Operating Torque (n.m)	3	4	5	10	12	14	18	25	40	55

Options
Gasket: NBR / MVQ / FPM
Manual handle or pneumatic actuator
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc. Sanitary 4 Inch 316 Switch Type 3PC Weld Butterfly Valve 5

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Display
