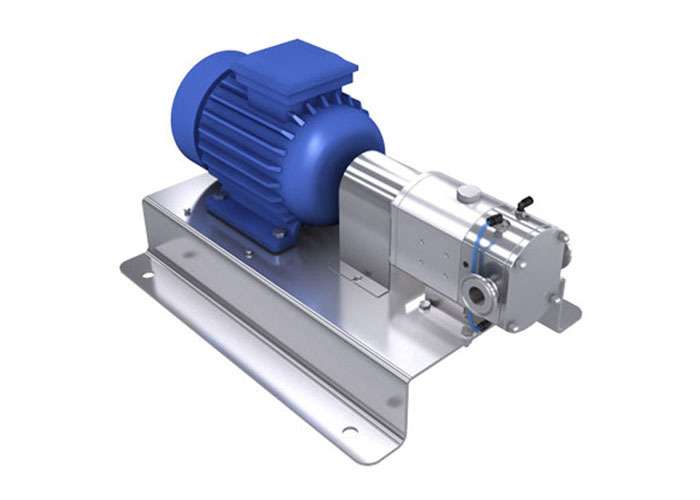

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: STUL/STUR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: 10-30 working days
Payment Terms: T/T, LC, Credit Card
Supply Ability: 20 sets 30 working days
Contact Now
Detailed Product Description
Name: Mini Rotary Lobe Pump Size: MINI STUL-R/L
Operation: Motor Mechanical: SIC / SIC / EPDM
Connection: Clamped Media: Honney And Comestic Etc.
Feature: Regulating Fluid Motor: ABB Or SEW
High Light:

12 Bar High Purity Pumps


Syrup High Purity Pumps


12 Bar lobe gear pump

Three leave rotary Lobe Pump for High viscosity syrup/tomato sauce transfer with small flowrate




Product Name:

Horizontal Positive Displacement Rotary Lobe Pump

Seal Material:

EPDM (Standard, FDA approval)

Max. Flow:



12bar/ 174PSI

Max. working temperature:

150 C / 302 F

Max. rev:

1450 rmp

Rotor Type:

3 Leave rotors, 6 Leave Rotor

Mechanical seal:


Motor power:

0.75kw, 1.5kw,2.2kw,3.0kw

Sealing option:

Sanitary single mechanical seal/

Double mechanical seal with cooling system


ABB,SEW, 50hz / 60hz

Surface treatment:

Inner polished and Sandblast outside

Available connection:

Clamp, Thread Butt weld, Flange

Available standard:




Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Structure Assembled on a stainless steel baseplate
Optional  Voltage (v) 220-240,360-400,420-460,630-690


1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor,
3 Leave rotors, 6 Leave Rotor
4. Gasket: FPM(Viton),NBR, EPDM
5. End-face heat jacket


A .Maual Continuously Variable Transmission
B. Frequency Cnverter adjust motor gear box
C.Fixed speed output transmission
Design and Features
1. Horizontal TUL,Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace

This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton


Flow Direction of Mini lobe pump

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps 0

Selection Table

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps 1

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps 2



Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps 3

Syrup Tomato Sauce Three Leave 12 Bar High Purity Pumps 4

Maintenance and repair
maintenance of the lobe pump, without the workshop due to compact design, can be made with ease and in a very short time in the field.
Separation of the electrical connection on the pump motor is required before the pump maintenance. After this process is done, pump maintenance and repair can be done.
• Maintenance and changing of Lobes, the coupling between the pump and engine and the pump with line connections can be made with the bolts without removing the front cover removed.
• In this section, The lobes that are easily removed, cleaning and maintenance can be performed.
• The front body to change the seal needs to be removed. Body also reveling operation can be performed in a simple way.
• The threaded portion of the oil reservoir drain oil at periodic intervals is replaced by the plug opening. In this way, the threaded life will be monitored for increase
• The necessary cleaning is done after they are removed all the parts
way back again onto the body and the pump assembled is activated. The direction of rotation of the motor when commissioning the pump according to electrical connections must be mad
